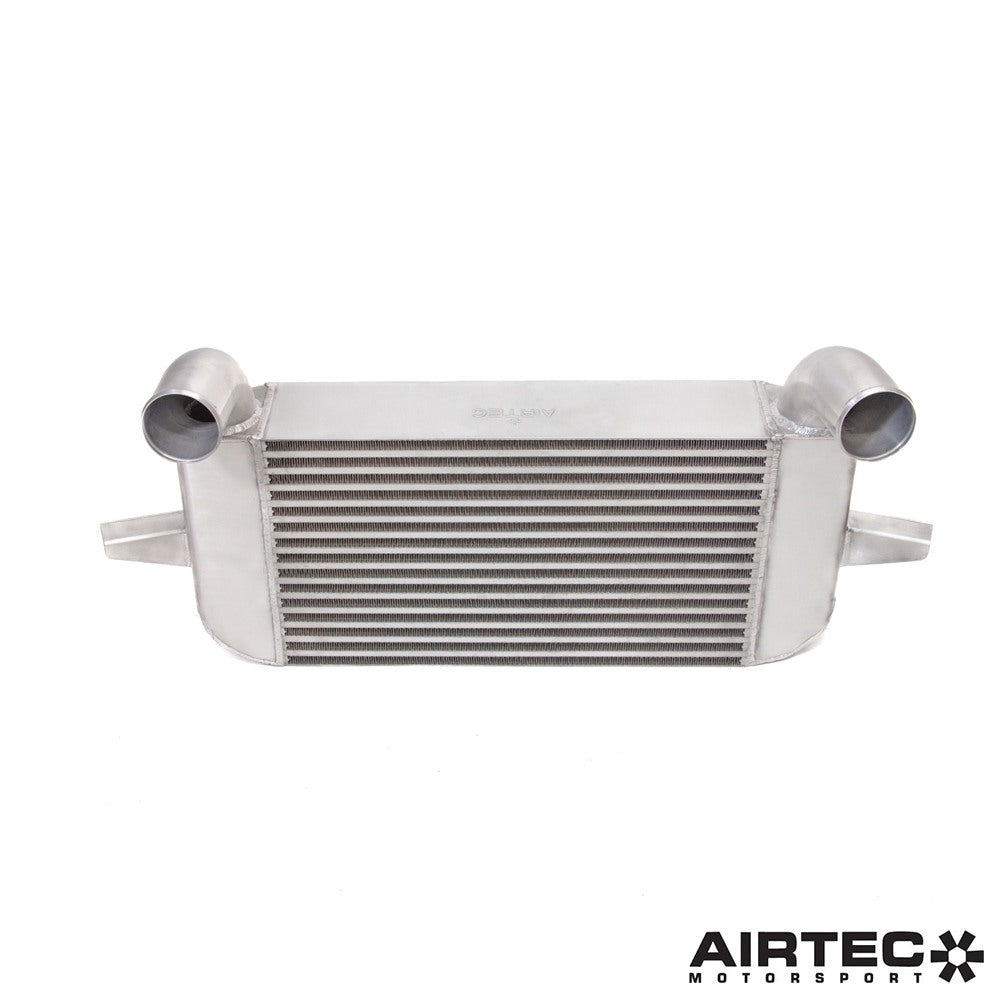

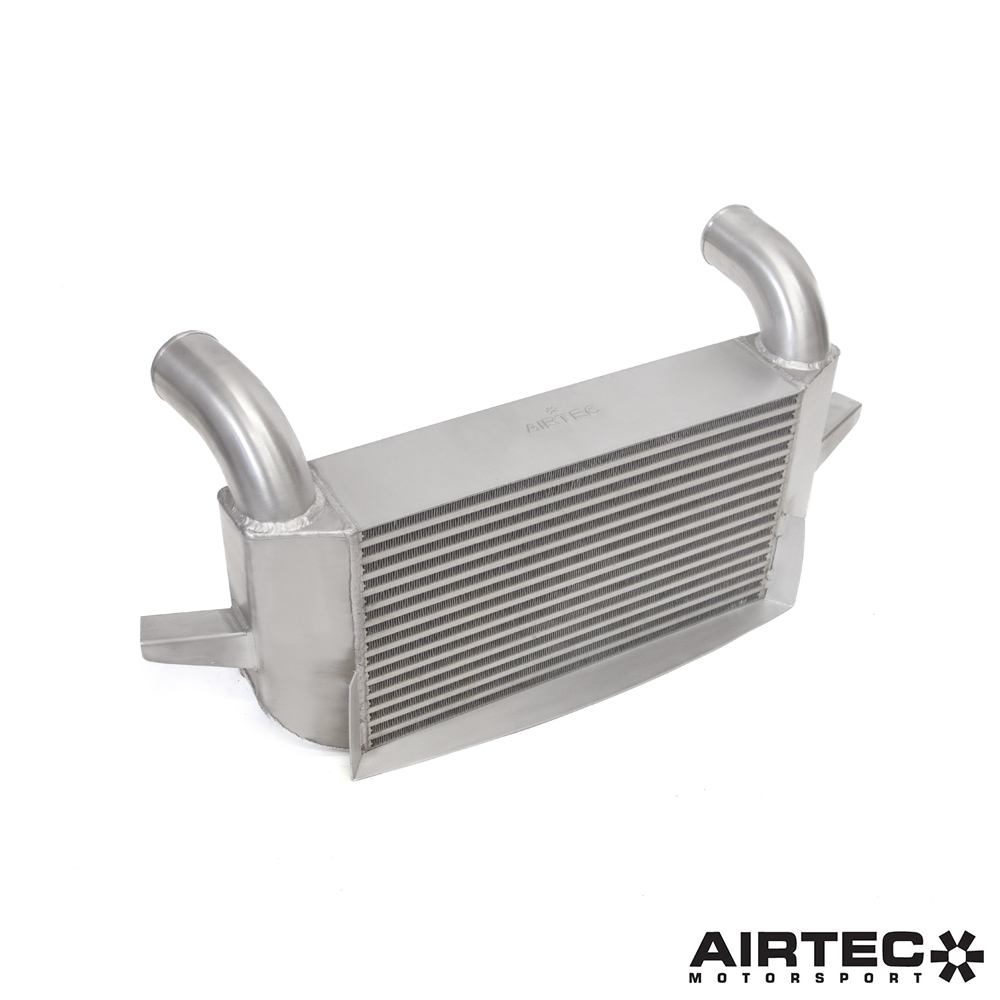

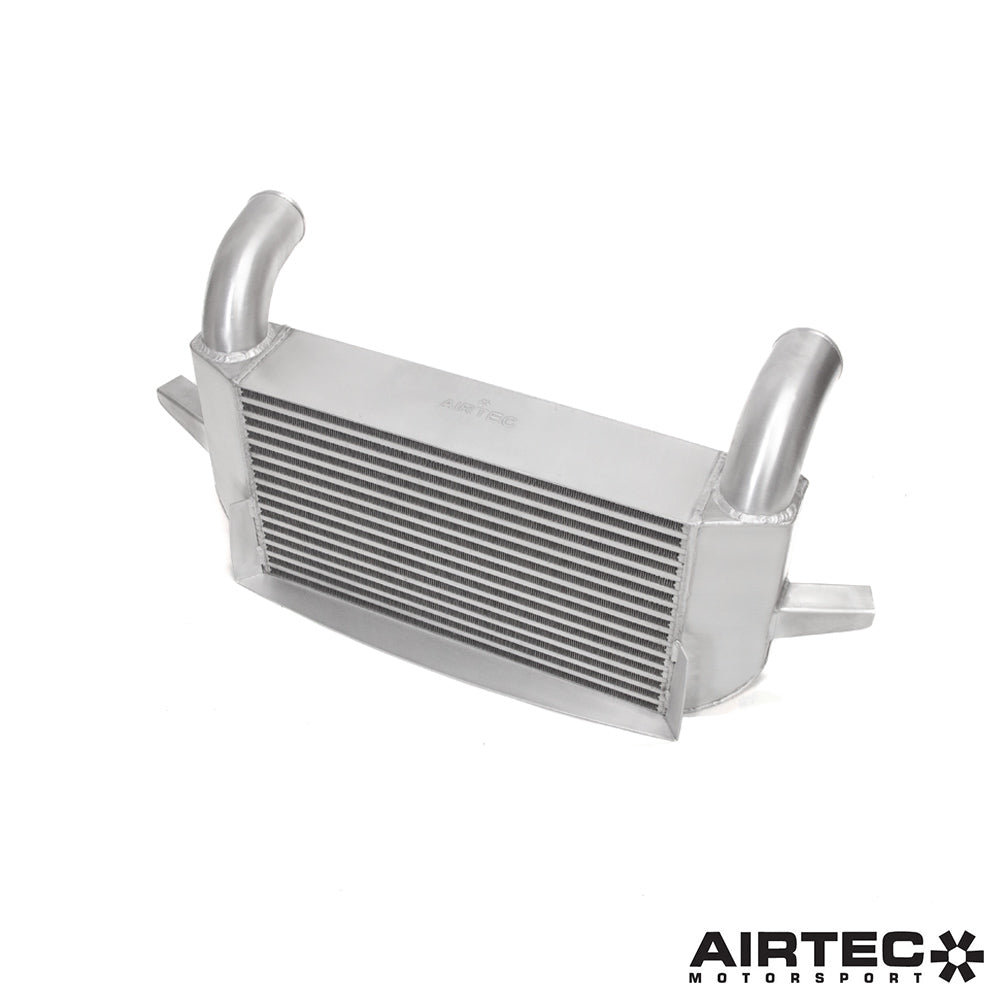

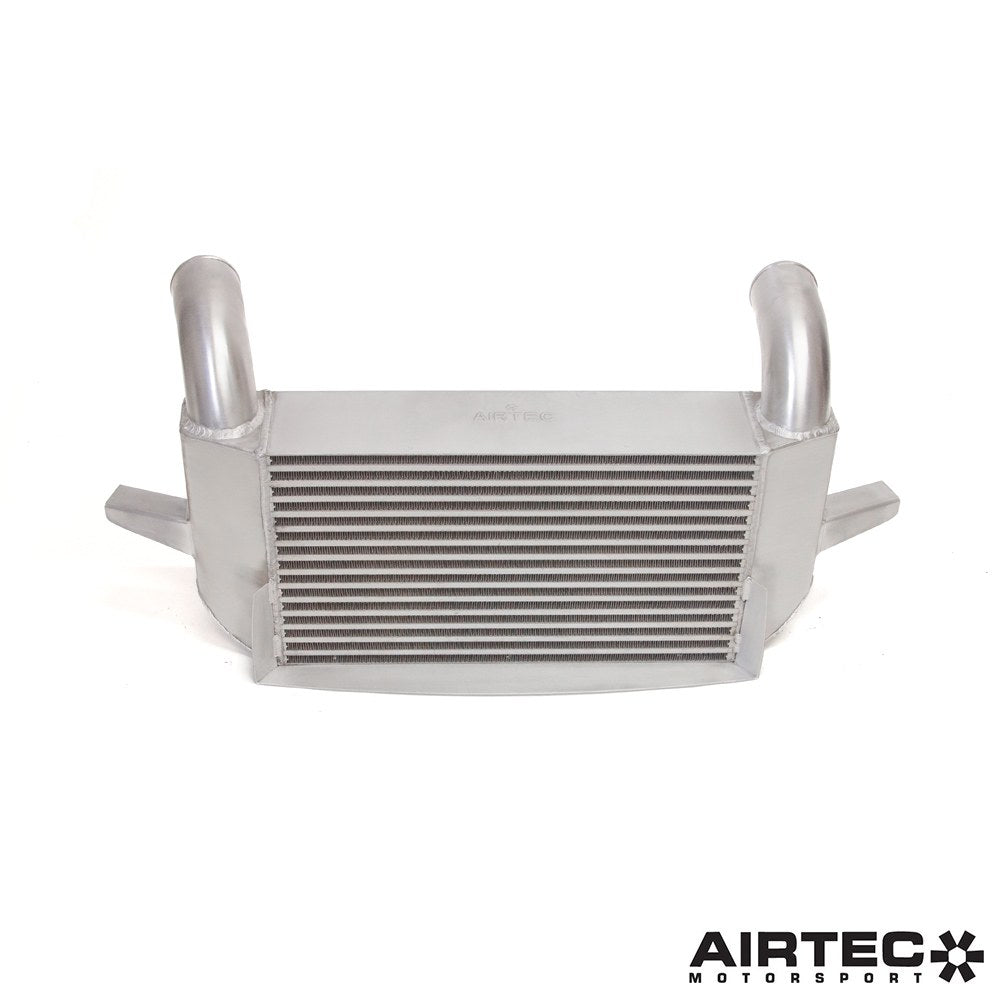

AIRTEC Motorsport 120mm Top Feed Ultimate Specification Intercooler for 3-Door & Sapphire Cosworth

As part of our expanding Cosworth product range, AIRTEC Motorsport is proud to launch our Ultimate Specification intercooler upgrade suitable for track or fast road use.

This huge 120mm core, top fed intercooler is suitable for the 3-door Sierra as well as the 2wd and 4wd Sapphire Cosworth models (will NOT fit Escort Cosworth) running a big power/extremely high level of tune.

This exact intercooler set up has been tried, tested and proven to work on highly modified examples producing 800+bhp (as used in a famous Cosworth-powered Mk3 Escort 4wd drag car in the UK).

The top feed design encourages air flow and reduces restriction in comparison to the common RS500-style intercoolers, which makes them more suited to higher levels of tune or heavy track use. The huge 120mm core coupled with our high-flow end tanks ensure air is directed correctly and efficiently.

An air ram scoop also works to ensure air is forced into the core.

The kit fits neatly behind the original bumper and can be reverted back to standard with no issues. It comes with the choice of original 60mm or larger 76mm inlet and outlet pipes, and optional fitting kit, which includes uprated polyurethane mounting bushes to replace the soft rubber bushes usually used to reduce movement and flex.

Power Rating:
There are a lot of variables to how much power each intercooler can be rated at, but as a general rule we advise the 120mm top feed intercooler is good for builds up to approx. 1,000bhp.

Dimensions:
Width: 715mm
Height: 300mm
Depth: 120mm
Capacity: 25.7-litres

Features:

• 120mm thick track proven bar and plate core
• AIRTEC cast end tanks for improved airflow and unbeatable strength
• Smooth 90 degree top pipes flow air into unique rounded bottom end tanks
• Air ram scoop to force flow through the core
• Available with 60mm or 76mm outlets - please specify in notes when ordering
• Available in silver or Pro Series black finish - please specify in notes when ordering
• AIRTEC logo available at no extra charge  - please specify in notes when ordering

Please note:

•  This item is made to order - expect a lead time of approx. 2-3 weeks.

• This will not fit Escort Cosworth (unless front end modification/fabrication) - please see here for 70mm version that is a direct fit for the Escort Cosworth AIRTEC Motorsport 70mm Top Feed Intercooler Upgrade for 3-door, Sapphire and Escort Cosworth - AIRTEC Motorsport
• This product has been designed to fit with our uprated radiator. If you are using a standard radiator you may need to space it down by approximately 5mm.

AIRTEC part number: ATINTFO65
