AIRTEC Motorsport 60mm Core Intercooler Upgrade for Astra Mk5 1.9 Diesel
Delivery & Availability
Delivery & Availability
Not all products are held in stock due to the specialist nature of many performance parts. While most items are available for next working day dispatch, selected products may carry extended supplier or production lead times.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
A great upgrade for all Astra 1.9 CDTI, especially with a remapped ECU. Perfect for fast road and even track use. As fitted to our AIRTEC Motorsport demo car.
TESTED

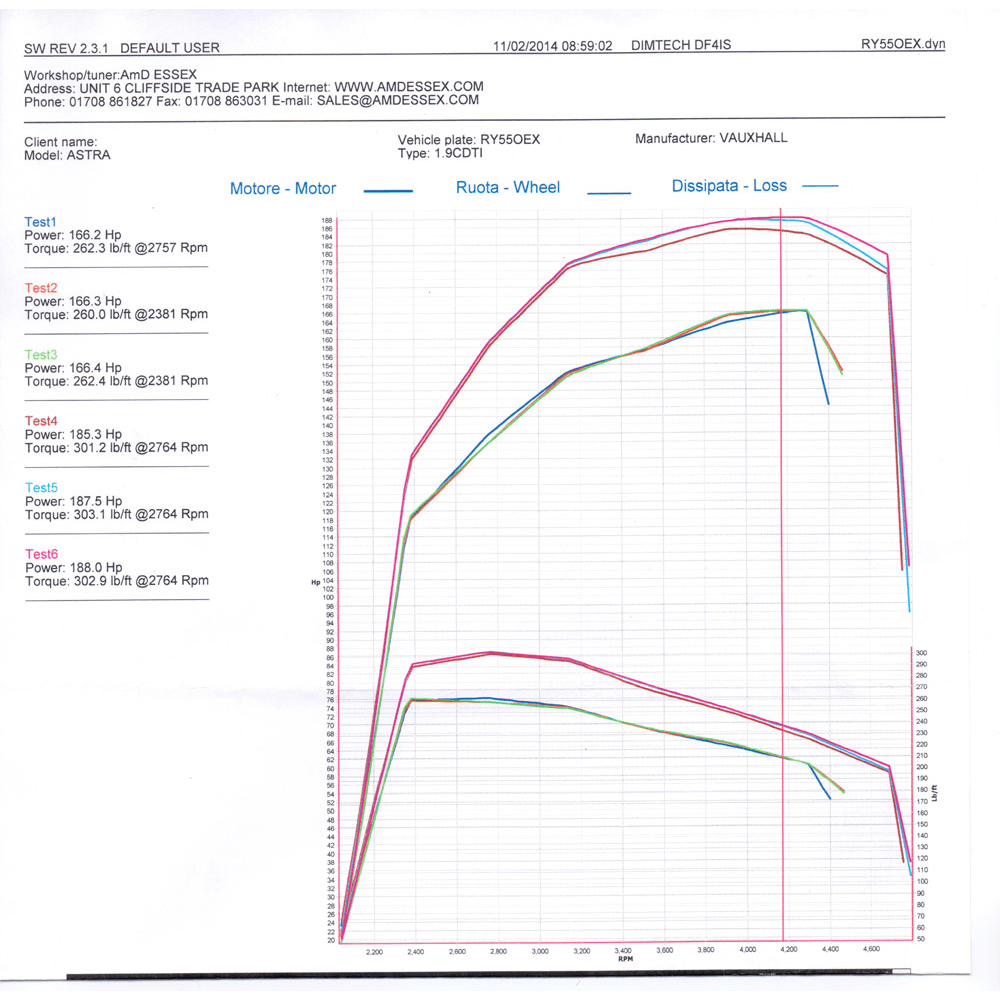

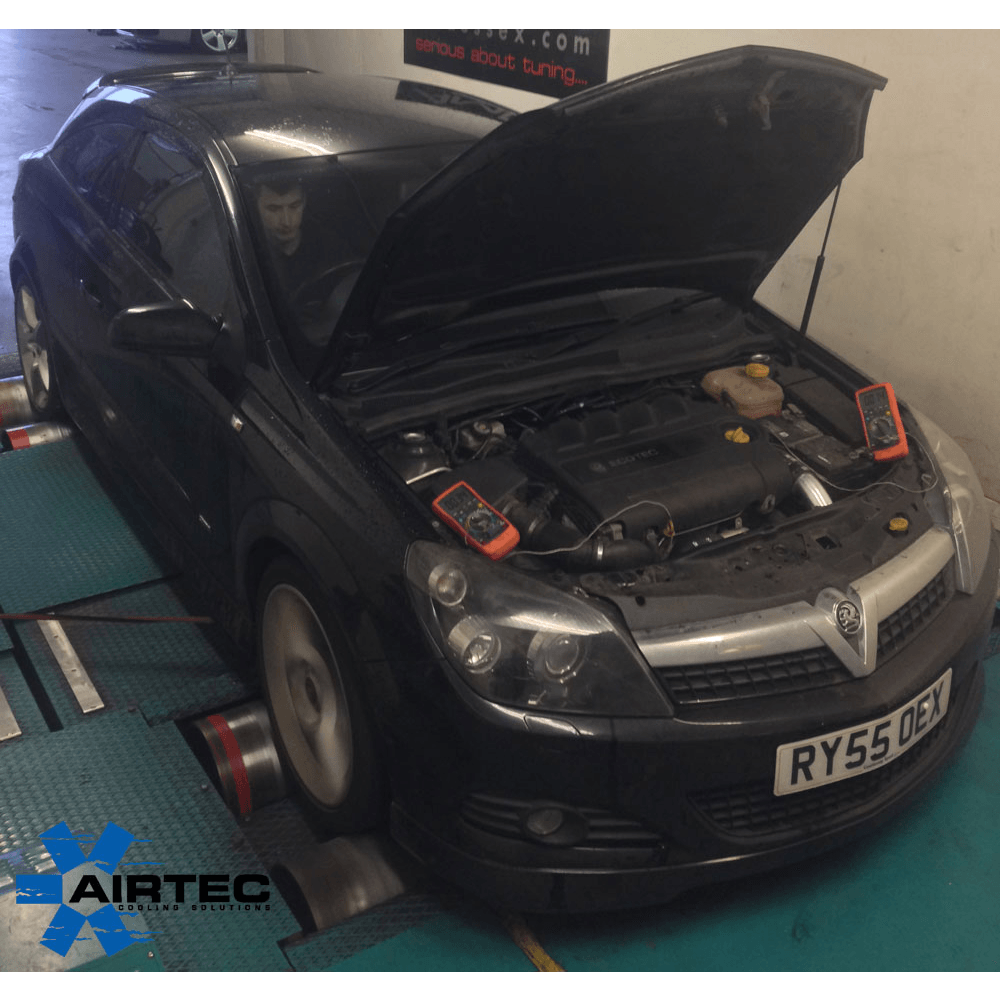

Test Results at AMD Tuning Essex 11/02/14 - Test vehicle fitted with AIRTEC Motorsport intercooler and dyno'd with standard map, then Stage 1 remap.
Standard map with AIRTEC Motorsport intercooler upgrade:
Run 1 - Intake temperature 115 degrees (charge air temp going into intercooler) & 13 degrees outlet temperature (charge air temp coming out of intercooler)
Run 2- Intake temperature 118 degrees (charge air temp going into intercooler) & 18 degrees outlet temperature (charge air temp coming out of intercooler)
Run 3 - Intake temperature 119 degrees (charge air temp going into intercooler) & 18 degrees outlet temperature (charge air temp coming out of intercooler)
Conclusion: Over the three test runs the AIRTEC Motorsport intercooler cooled down the charged air temperature by an average of 101 degrees.
Stage 1map with AIRTEC Motorsport intercooler upgrade:
Run 1 - Intake temperature 128 degrees (charge air temp going into intercooler) & 19 degrees outlet temperature (charge air temp coming out of intercooler)
Run 2- Intake temperature 128 degrees (charge air temp going into intercooler) & 23 degrees outlet temperature (charge air temp coming out of intercooler)
Run 3 - Intake temperature 136 degrees (charge air temp going into intercooler) & 25 degrees outlet temperature (charge air temp coming out of intercooler)
Conclusion: Over the test runs the AIRTEC intercooler cooled down the charged Air Temperature by an average of 108 degrees.
Dimensions:
Width: 875mm
Height: 230mm
Depth: 60mm
Features:

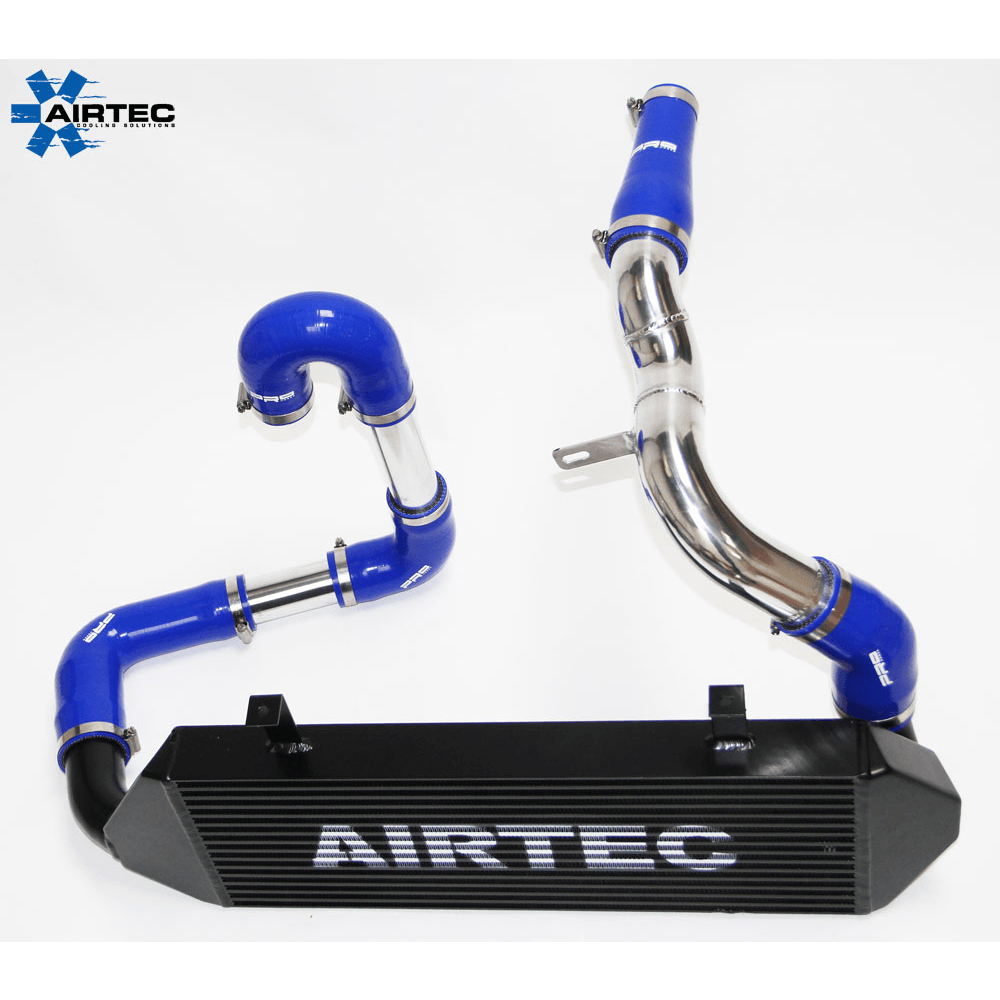

- Huge 60mm core Intercooler with flowed cast end tanks, this means less welding and a stronger Intercooler
- High quality 4/5ply silicon hose's with alloy joiners & stainless jubilee clips
- Powder coated standard intercooler support brackets
- Retains original fog lights without modification
- Fitting instructions and all required fixings
- Unbeatable value for money
- Proven power increases for fast road and track
- Available in Satin Black or Natural Silver
Registered Design Right number: Application Pending
AIRTEC part no: ATINTVAUX2
