Description
As part of our expanding Toyota platform product range, AIRTEC Motorsport is proud to launch our auxiliary radiator upgrade aimed at Yaris GR Gen 2 models for fast road or track use.
Whilst the Gen 1 Yaris GR did not feature an auxiliary radiator, AIRTEC Motorsport created one fitted behind the bumper to help cooling and it proved effective, so it was no surprise that the new and improved Gen 2 Yaris GR came fitted with an auxiliary radiator already located behind the bumper.

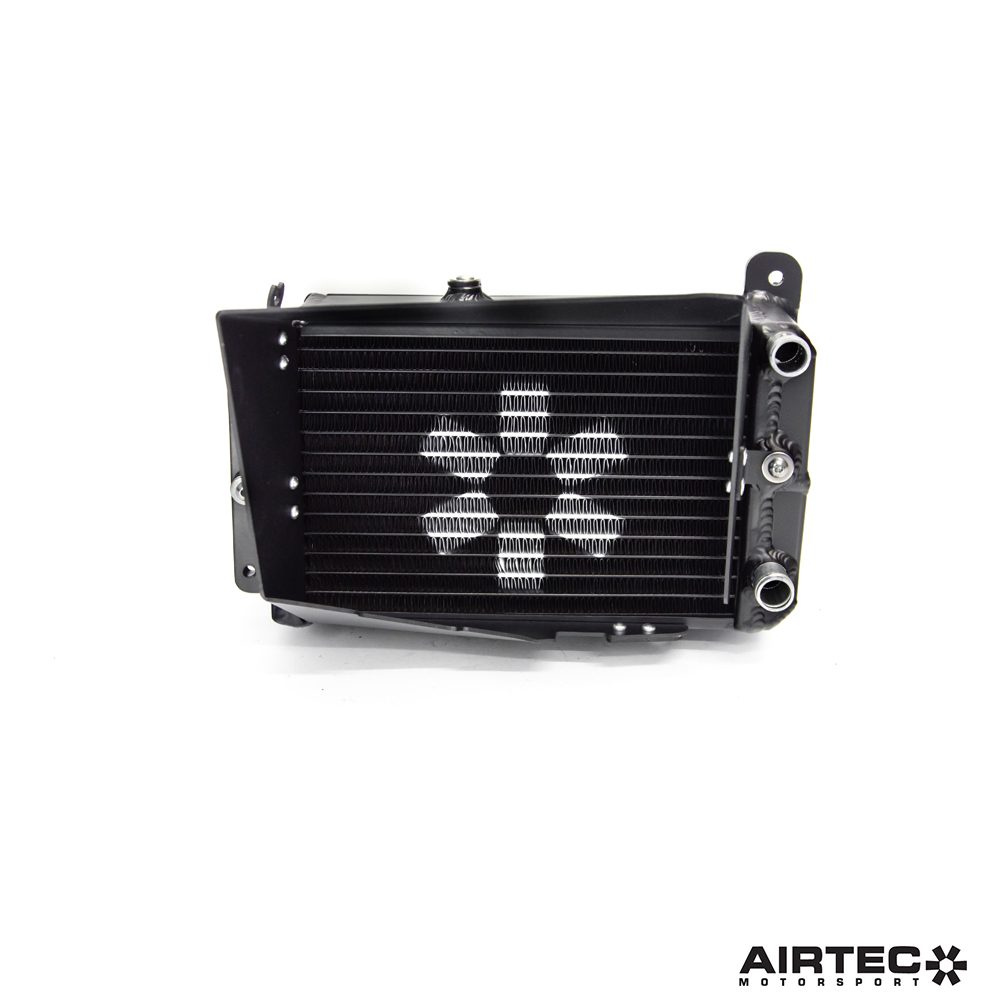

That gave us a head start to create a direct replacement radiator that was larger in capacity to help cooling. As a result, the increased core size radiator is taller, wider and deeper, which means capacity is increased by 86% compared to standard, whilst frontal area is also increased by 19% to help cool the extra capacity.

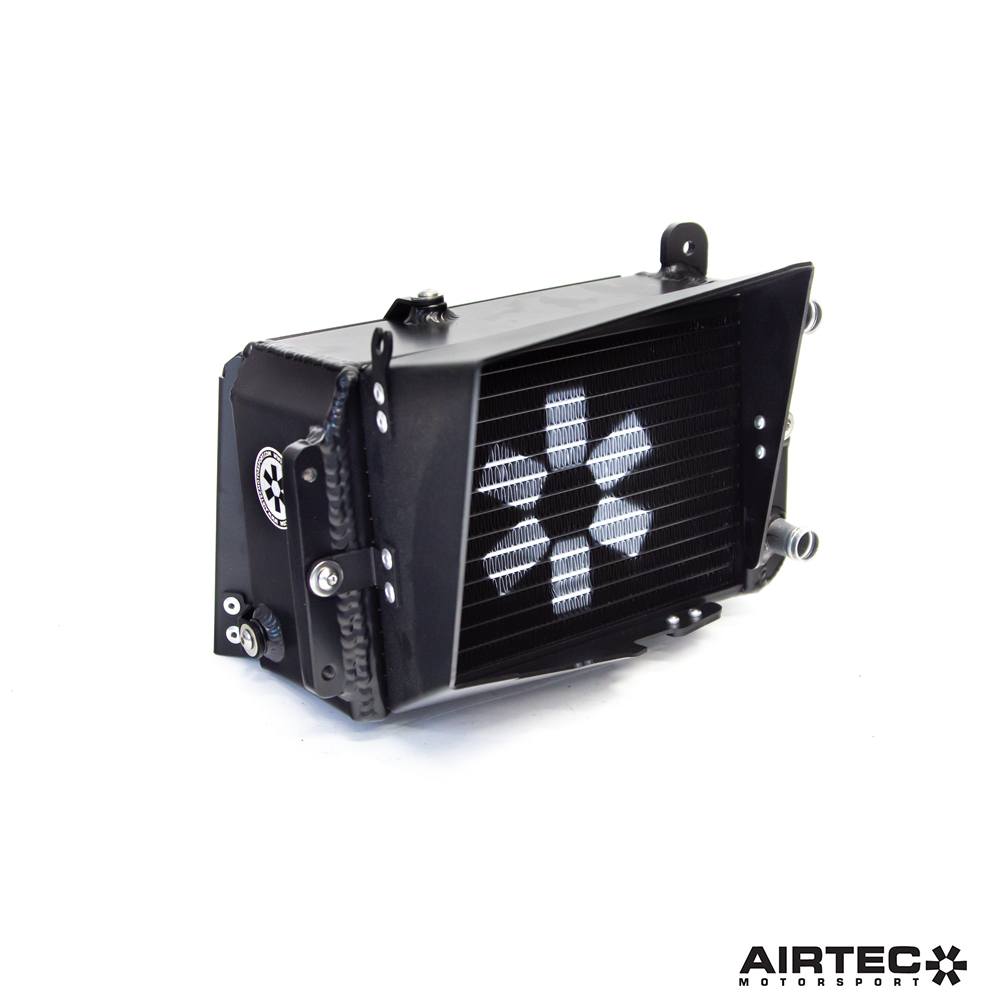

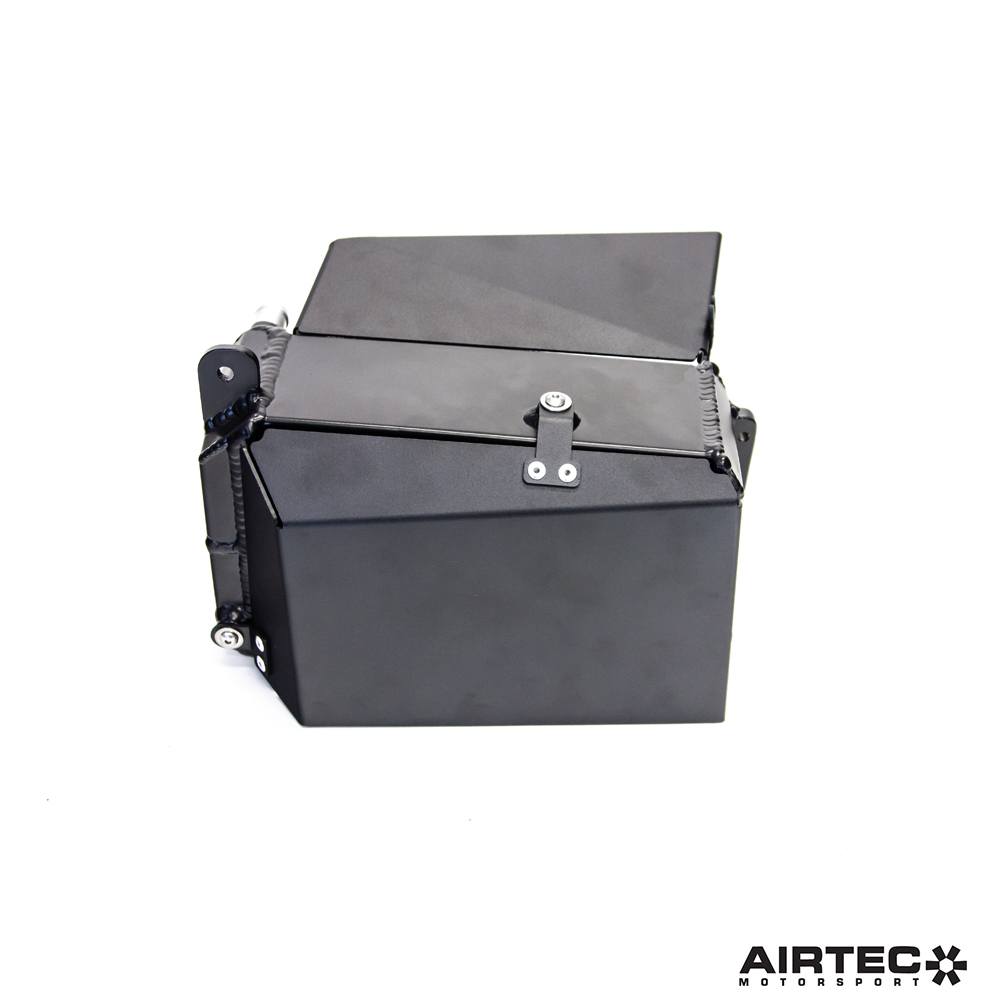

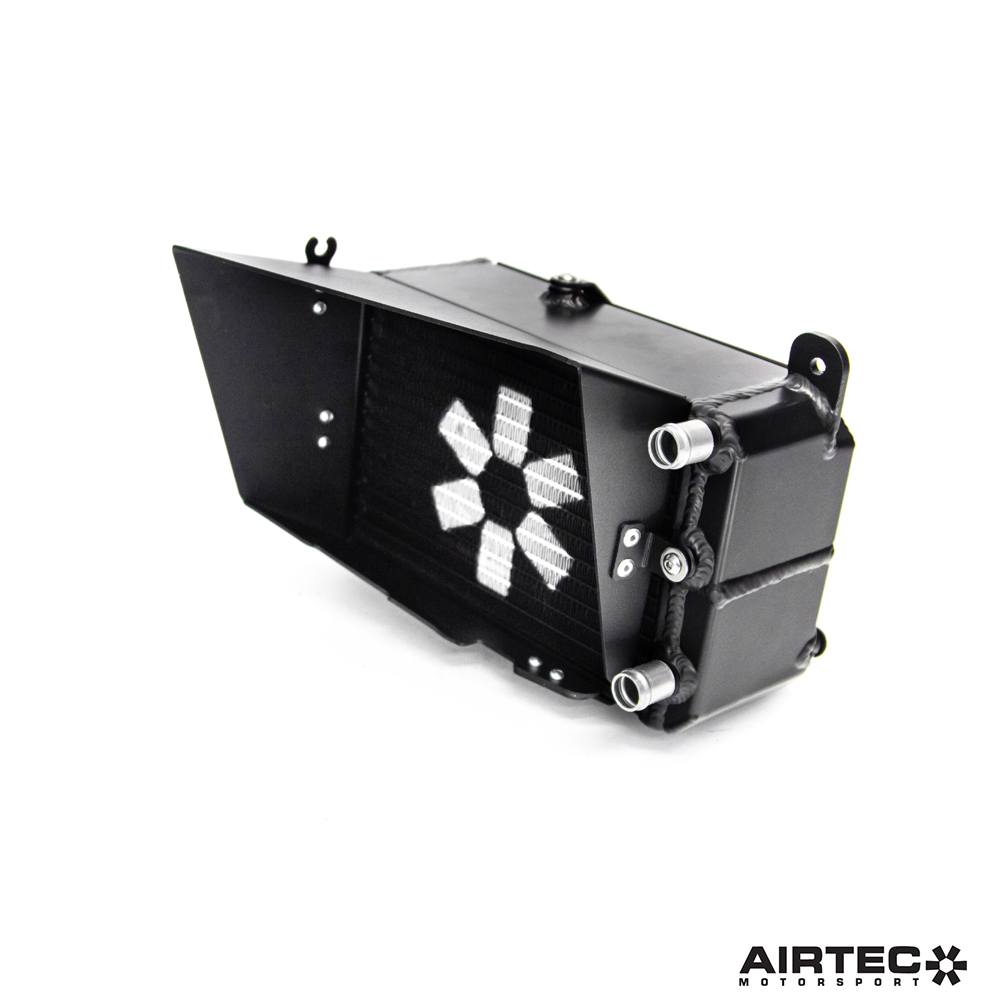

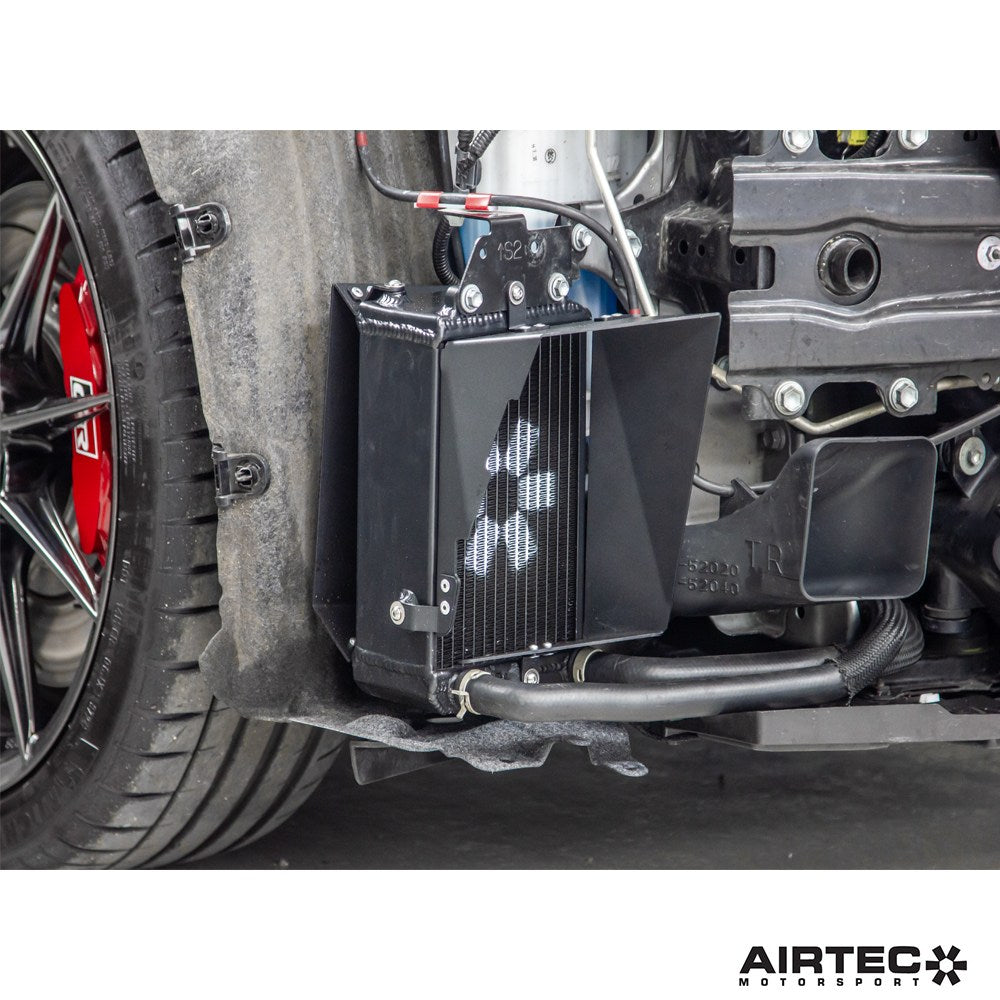

To further improve its effectiveness, the kit also utilises laser-cut aluminium ducting to force cold air through the radiator. To create a flow path and ensure cooling, air then exits via an aluminium duct through to the inner arch liner. Furthermore, to protect the larger core in its vulnerable position at the front of the car, there is also a mesh stone guard fitted in place.

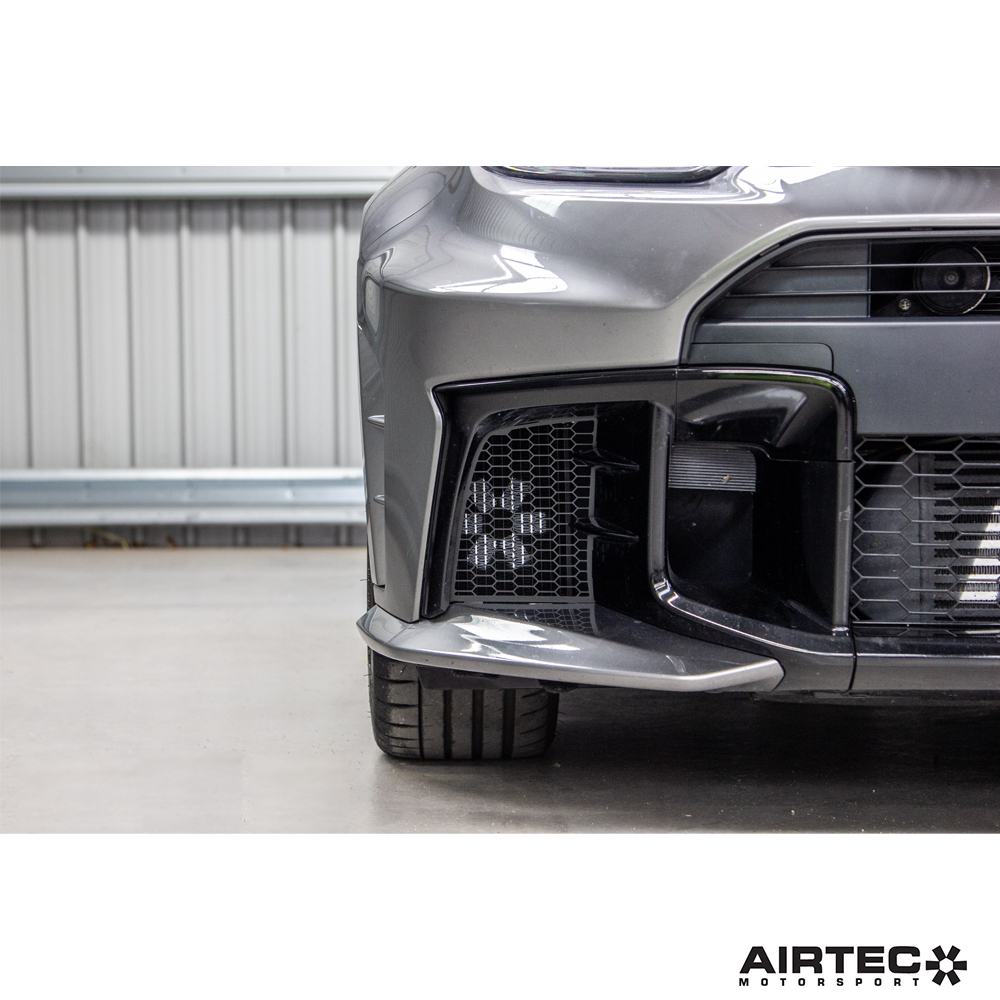

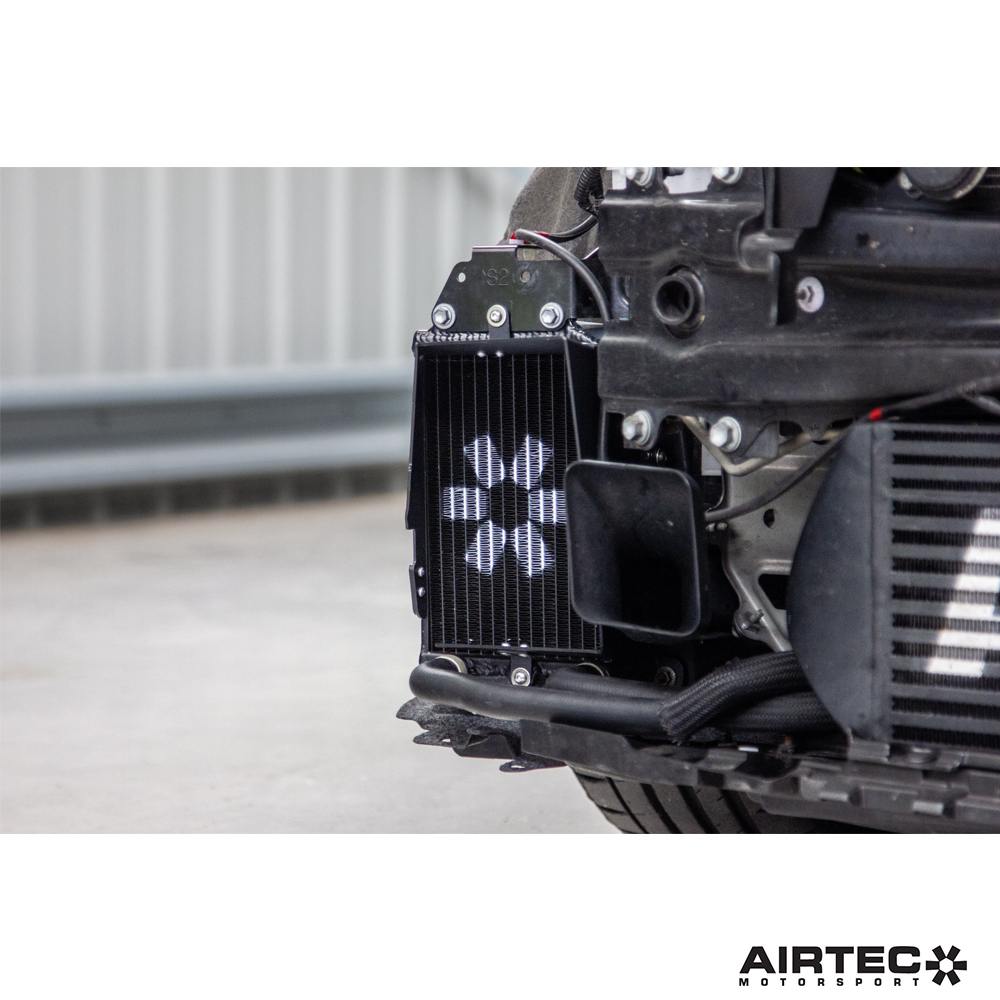

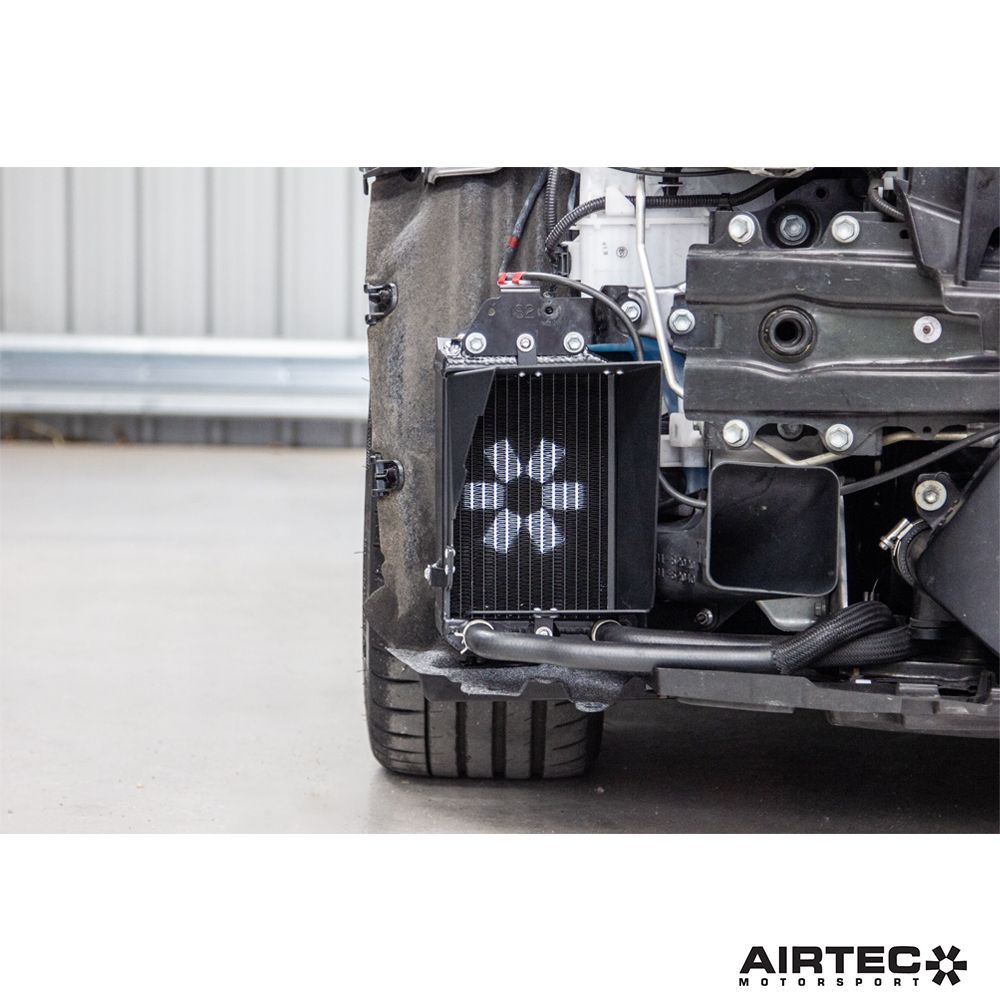

Despite the significant improvements, the radiator fits neatly behind the bumper and requires no modifications to fit, using the OEM mounts and the original coolant connectors.
Finished in a high-quality powder-coated black finish, the comprehensive fitting kit includes a detailed instruction fitting guide.
Dimensions:
OEM Radiator
Height: 190mm
Width: 135mm
Depth: 48mm
Volume: 1.23-litres
Frontal area: 256cm²
AIRTEC Motorsport Radiator
Height: 210mm
Width: 145mm
Depth: 75mm
Volume: 2.28-litres
Frontal area: 304cm²
Features:
- Comprehensive kit designed specifically for the Yaris GR Gen 2
- 86% larger core compared to standard cooler
- 19% increase in frontal area compared to standard cooler
- Front guide to direct fresh air into the oil cooler and rear duct to ensure flow out
- Direct replacement kit that requires no cutting or trimming
- Finished in high-quality black powder coat
- Includes all fittings and fixtures
- Features detailed fitting guide
View our YouTube install video here.
AIRTEC part no: ATRADYGR4
