PAGID Racing STREET+ ALFA ROMEO 156 Sportwagon (932_) Brake Pads - T8017SP2001 Front

PAGID Racing STREET+ Brake Pads - T8017SP2001 Similar to PAGID Racing brake pads, the STREET+ by PAGID Racing features a dual retention system that combines an adhesive bond with a unique mechanical system. The mechanical system on STREET+ by PAGID Racing includes a crimped backplate interface with the friction material, ensuring a stronger bond between the friction material and the backplate. STREET+

• Axle Set No: T8017SP2001 Compliance: R90 - Suitable for road use.

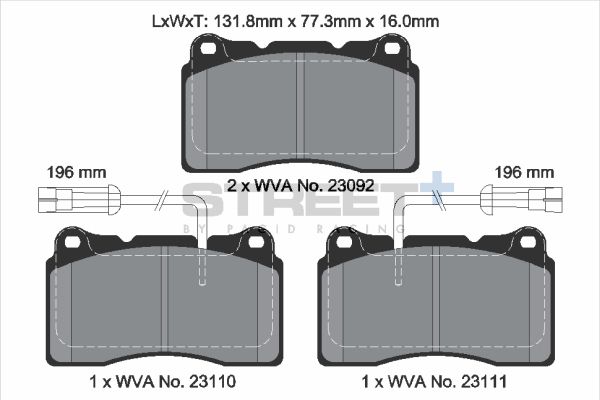

Specification

• Brake System : Brembo
• Width [mm] : 131.6
• Height [mm] : 77.2
• Thickness [mm] : 16
• Wear Warning Contact

OEM Cross References

Manufacturer Reference ALFA ROMEO 6001073124 ALFA ROMEO 71770977 ALFA ROMEO 77362226 ALFA ROMEO 77363328 ALFA ROMEO 77363336 ALFA ROMEO 77363545 ALFA ROMEO 77364265 ALFA ROMEO 9948030 ALFA ROMEO 9948557 ALFA ROMEO 9951050 ALFA ROMEO 9951155 FIAT 71770977 FIAT 77362226 FIAT 77363328 FIAT 77363336 FIAT 9948557 LANCIA 77362226 LANCIA 77363328 LANCIA 9948557 VOLVO 30645135 VOLVO 30748513 PAGID STREET+

PAGID STREET+ Features

• PAGID STREET+ Unique Double Retention System Developed with expertise transferred from racing technology Friction material is mechanically secured to the backplate No delamination of friction material from the steel backplate Motorsport high-tech and innovation for your vehicle The STREET+ friction compound by PAGID Racing integrates decades of racing experience into a street-legal product that complies with the latest environmental standards
• Equipped with anti-noise shims and fully accessorized as an aftermarket brake pad range, this compound exclusively uses the mechanical retention system found in all PAGID Racing brake pads
• This race-inspired technology provides an ideal solution for drivers starting track activities

Bedding In Procedure

Bedding In for PAGID STREET+ Brake Pads After installing new brake discs and pads, it is essential to bed in the friction surfaces. This ensures they adapt properly to one another for safe and optimal brake performance. If not bedded in correctly, uneven material transfer between the pad and disc or uneven distribution of deposits may occur, potentially leading to vibrations or noise issues. Warranty is voided for all pads exhibiting symptoms of not being bedded in correctly. Guidelines During the bedding-in period, please follow these guidelines: Caution: Avoid excessive braking as this can overheat the friction material too quickly, causing the brake pad surface to glaze over and reduce braking performance. Perform the procedure on safe sections of road where these maneuvers can be conducted safely. Allow time between braking to gradually heat the brakes and avoid thermal shock. Start with gentle and cautious braking from a maximum speed of 50 km/h. Follow up with several braking procedures from medium speeds, allowing cooling time between cycles. For the first 300 km, drive moderately and avoid unnecessary hard or continuous braking.

Weight 3.2 kg Dimensions 20 12 12 cm Axle Fitment Front Brand PAGID Racing R90 Compliant Yes
