PAGID Racing STREET+ AUDI A1 (8X1, 8XK) Brake Pads - T8033SP2001 Front

PAGID Racing STREET+ Brake Pads - T8033SP2001 Similar to PAGID Racing brake pads, the STREET+ by PAGID Racing features a dual retention system that combines an adhesive bond with a unique mechanical system. The mechanical system on STREET+ by PAGID Racing includes a crimped backplate interface with the friction material, ensuring a stronger bond between the friction material and the backplate. STREET+

• Axle Set No: T8033SP2001 Compliance: R90 - Suitable for road use.

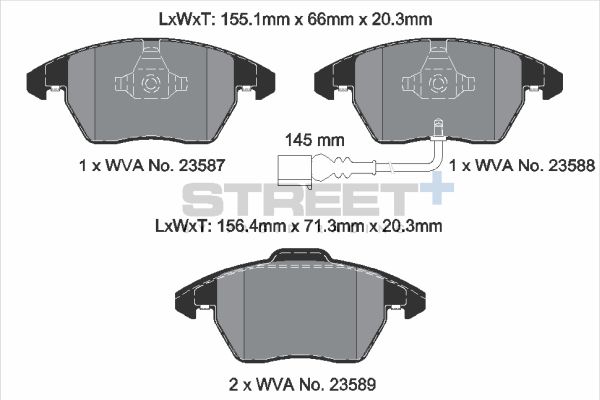

Specification

• Brake System : Teves
• Width 1 [mm] : 155.1
• Width 2 [mm] : 156.5
• Height 1 [mm] : 66
• Height 2 [mm] : 71.3
• Thickness [mm] : 20.3
• Wear Warning Contact

OEM Cross References

Manufacturer Reference AUDI 1K0698151 AUDI 1K0698151C AUDI 1K0698151E AUDI 3C0698151 AUDI 3C0698151B AUDI 3C0698151K AUDI 5K0698151 AUDI 8J0698151 AUDI L1K0698151E SEAT 1K0698151 SEAT 1K0698151C SEAT 1K0698151E SEAT 3C0698151 SEAT 3C0698151B SEAT 5K0698151 SEAT 5K0698151B SEAT 8J0698151 SEAT L1K0698151E SKODA (SVW) 1TD698151 SKODA 1K0698151 SKODA 1K0698151C SKODA 1K0698151E SKODA 3C0698151 SKODA 3C0698151B SKODA 5K0698151 SKODA 8J0698151 SKODA L1K0698151E VW (FAW) L1K0698151E VW (FAW) L5C0698151A VW (SVW) 1TD698151 VW 1K0698151 VW 1K0698151C VW 1K0698151E VW 3C0698151 VW 3C0698151B VW 5C0698151A VW 5K0698151 VW 8J0698151 VW L1K0698151E PAGID STREET+

PAGID STREET+ Features

• PAGID STREET+ Unique Double Retention System Developed with expertise transferred from racing technology Friction material is mechanically secured to the backplate No delamination of friction material from the steel backplate Motorsport high-tech and innovation for your vehicle The STREET+ friction compound by PAGID Racing integrates decades of racing experience into a street-legal product that complies with the latest environmental standards
• Equipped with anti-noise shims and fully accessorized as an aftermarket brake pad range, this compound exclusively uses the mechanical retention system found in all PAGID Racing brake pads
• This race-inspired technology provides an ideal solution for drivers starting track activities

Bedding In Procedure

Bedding In for PAGID STREET+ Brake Pads After installing new brake discs and pads, it is essential to bed in the friction surfaces. This ensures they adapt properly to one another for safe and optimal brake performance. If not bedded in correctly, uneven material transfer between the pad and disc or uneven distribution of deposits may occur, potentially leading to vibrations or noise issues. Warranty is voided for all pads exhibiting symptoms of not being bedded in correctly. Guidelines During the bedding-in period, please follow these guidelines: Caution: Avoid excessive braking as this can overheat the friction material too quickly, causing the brake pad surface to glaze over and reduce braking performance. Perform the procedure on safe sections of road where these maneuvers can be conducted safely. Allow time between braking to gradually heat the brakes and avoid thermal shock. Start with gentle and cautious braking from a maximum speed of 50 km/h. Follow up with several braking procedures from medium speeds, allowing cooling time between cycles. For the first 300 km, drive moderately and avoid unnecessary hard or continuous braking.

Weight 3.2 kg Dimensions 20 12 12 cm Axle Fitment Front Brand PAGID Racing R90 Compliant Yes
