PAGID Racing STREET+ AUDI A4 Allroad B8 (8KH) Brake Pads - T8093SP2001 Front

PAGID Racing STREET+ Brake Pads - T8093SP2001 Similar to PAGID Racing brake pads, the STREET+ by PAGID Racing features a dual retention system that combines an adhesive bond with a unique mechanical system. The mechanical system on STREET+ by PAGID Racing includes a crimped backplate interface with the friction material, ensuring a stronger bond between the friction material and the backplate. STREET+

• Axle Set No: T8093SP2001 Compliance: R90 - Suitable for road use.

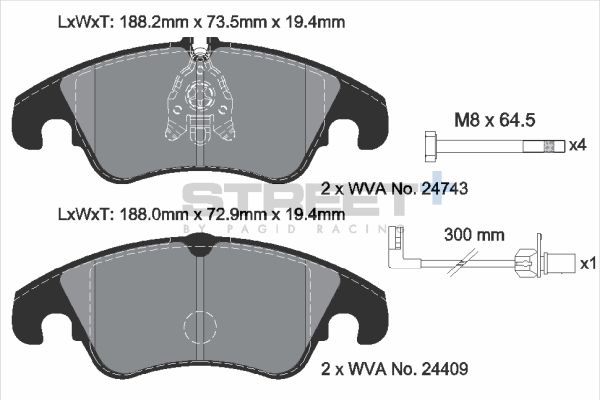

Specification

• Brake System : Lucas
• Width [mm] : 188.2
• Height 1 [mm] : 73.5
• Height 2 [mm] : 73.9
• Thickness [mm] : 19
• Wear Warning Contact

OEM Cross References

AUDI (FAW) 4GD698151 AUDI (FAW) L4GD698151 AUDI 8K0698151 AUDI 8K0698151B AUDI 8K0698151D AUDI 8K0698151E AUDI 8K0698151G AUDI 8K0698151H AUDI 8K0698151J AUDI 8K0698151K AUDI 8K0698151R AUDI 8R0698151 AUDI 8R0698151AG SEAT 8K0698151 SEAT 8K0698151B SEAT 8K0698151D SEAT 8K0698151E SEAT 8K0698151G SEAT 8K0698151H SEAT 8K0698151J SEAT 8K0698151K SEAT 8R0698151 SKODA 8K0698151 SKODA 8K0698151B SKODA 8K0698151D SKODA 8K0698151E SKODA 8K0698151G SKODA 8K0698151H SKODA 8K0698151J SKODA 8K0698151K SKODA 8R0698151 VW (SVW) L4GD698151 VW 8K0098301G VW 8K0098301H VW 8K0698151 VW 8K0698151B VW 8K0698151D VW 8K0698151E VW 8K0698151G VW 8K0698151H VW 8K0698151J VW 8K0698151K VW 8R0698151 PAGID STREET+

PAGID STREET+ Features

• PAGID STREET+ Unique Double Retention System Developed with expertise transferred from racing technology Friction material is mechanically secured to the backplate No delamination of friction material from the steel backplate Motorsport high-tech and innovation for your vehicle The STREET+ friction compound by PAGID Racing integrates decades of racing experience into a street-legal product that complies with the latest environmental standards
• Equipped with anti-noise shims and fully accessorized as an aftermarket brake pad range, this compound exclusively uses the mechanical retention system found in all PAGID Racing brake pads
• This race-inspired technology provides an ideal solution for drivers starting track activities

Bedding In Procedure

Bedding In for PAGID STREET+ Brake Pads After installing new brake discs and pads, it is essential to bed in the friction surfaces. This ensures they adapt properly to one another for safe and optimal brake performance. If not bedded in correctly, uneven material transfer between the pad and disc or uneven distribution of deposits may occur, potentially leading to vibrations or noise issues. Warranty is voided for all pads exhibiting symptoms of not being bedded in correctly. Guidelines During the bedding-in period, please follow these guidelines: Caution: Avoid excessive braking as this can overheat the friction material too quickly, causing the brake pad surface to glaze over and reduce braking performance. Perform the procedure on safe sections of road where these maneuvers can be conducted safely. Allow time between braking to gradually heat the brakes and avoid thermal shock. Start with gentle and cautious braking from a maximum speed of 50 km/h. Follow up with several braking procedures from medium speeds, allowing cooling time between cycles. For the first 300 km, drive moderately and avoid unnecessary hard or continuous braking.

Weight 3.2 kg Dimensions 20 12 12 cm Axle Fitment Front Brand PAGID Racing R90 Compliant Yes
