PAGID Racing STREET+ AUDI A6 Allroad C8 (4AH) Brake Pads - T8227SP2001 Rear

PAGID Racing STREET+ Brake Pads - T8227SP2001 Similar to PAGID Racing brake pads, the STREET+ by PAGID Racing features a dual retention system that combines an adhesive bond with a unique mechanical system. The mechanical system on STREET+ by PAGID Racing includes a crimped backplate interface with the friction material, ensuring a stronger bond between the friction material and the backplate. STREET+

• Axle Set No: T8227SP2001 Compliance: R90 - Suitable for road use.

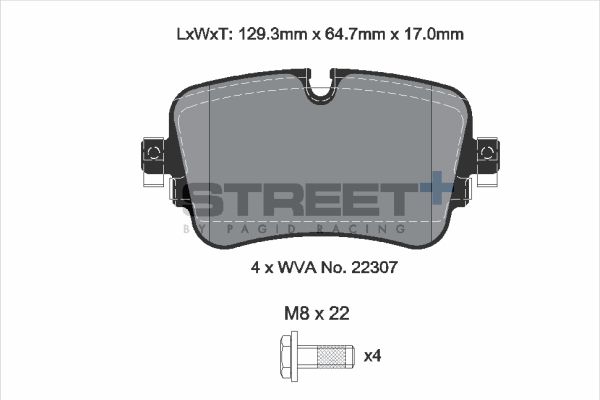

Specification

• Brake System : TRW
• Width [mm] : 129.3
• Height [mm] : 64.7
• Thickness [mm] : 17
• Wear Warning Contact

OEM Cross References

Manufacturer Reference AUDI 4KE698451A AUDI 4M0698451BM AUDI 4M0698451BP AUDI 4M0698451F AUDI 4M0698451G AUDI 4M0698451L AUDI 4M0698451M AUDI 4M0698451N AUDI 4M0698451P AUDI 4M0698451R AUDI 4N0698451C SEAT 4M0698451F SEAT 4M0698451G SEAT 4M0698451M SEAT 4M0698451N SEAT 4M0698451P SEAT 4M0698451R SKODA 4M0698451F SKODA 4M0698451G SKODA 4M0698451M SKODA 4M0698451N SKODA 4M0698451P SKODA 4M0698451R VW 4M0698451BN VW 4M0698451F VW 4M0698451G VW 4M0698451L VW 4M0698451M VW 4M0698451N VW 4M0698451P VW 4M0698451R PAGID STREET+

PAGID STREET+ Features

• PAGID STREET+ Unique Double Retention System Developed with expertise transferred from racing technology Friction material is mechanically secured to the backplate No delamination of friction material from the steel backplate Motorsport high-tech and innovation for your vehicle The STREET+ friction compound by PAGID Racing integrates decades of racing experience into a street-legal product that complies with the latest environmental standards
• Equipped with anti-noise shims and fully accessorized as an aftermarket brake pad range, this compound exclusively uses the mechanical retention system found in all PAGID Racing brake pads
• This race-inspired technology provides an ideal solution for drivers starting track activities

Bedding In Procedure

Bedding In for PAGID STREET+ Brake Pads After installing new brake discs and pads, it is essential to bed in the friction surfaces. This ensures they adapt properly to one another for safe and optimal brake performance. If not bedded in correctly, uneven material transfer between the pad and disc or uneven distribution of deposits may occur, potentially leading to vibrations or noise issues. Warranty is voided for all pads exhibiting symptoms of not being bedded in correctly. Guidelines During the bedding-in period, please follow these guidelines: Caution: Avoid excessive braking as this can overheat the friction material too quickly, causing the brake pad surface to glaze over and reduce braking performance. Perform the procedure on safe sections of road where these maneuvers can be conducted safely. Allow time between braking to gradually heat the brakes and avoid thermal shock. Start with gentle and cautious braking from a maximum speed of 50 km/h. Follow up with several braking procedures from medium speeds, allowing cooling time between cycles. For the first 300 km, drive moderately and avoid unnecessary hard or continuous braking.

Weight 3.2 kg Dimensions 20 12 12 cm Axle Fitment Rear Brand PAGID Racing R90 Compliant Yes
