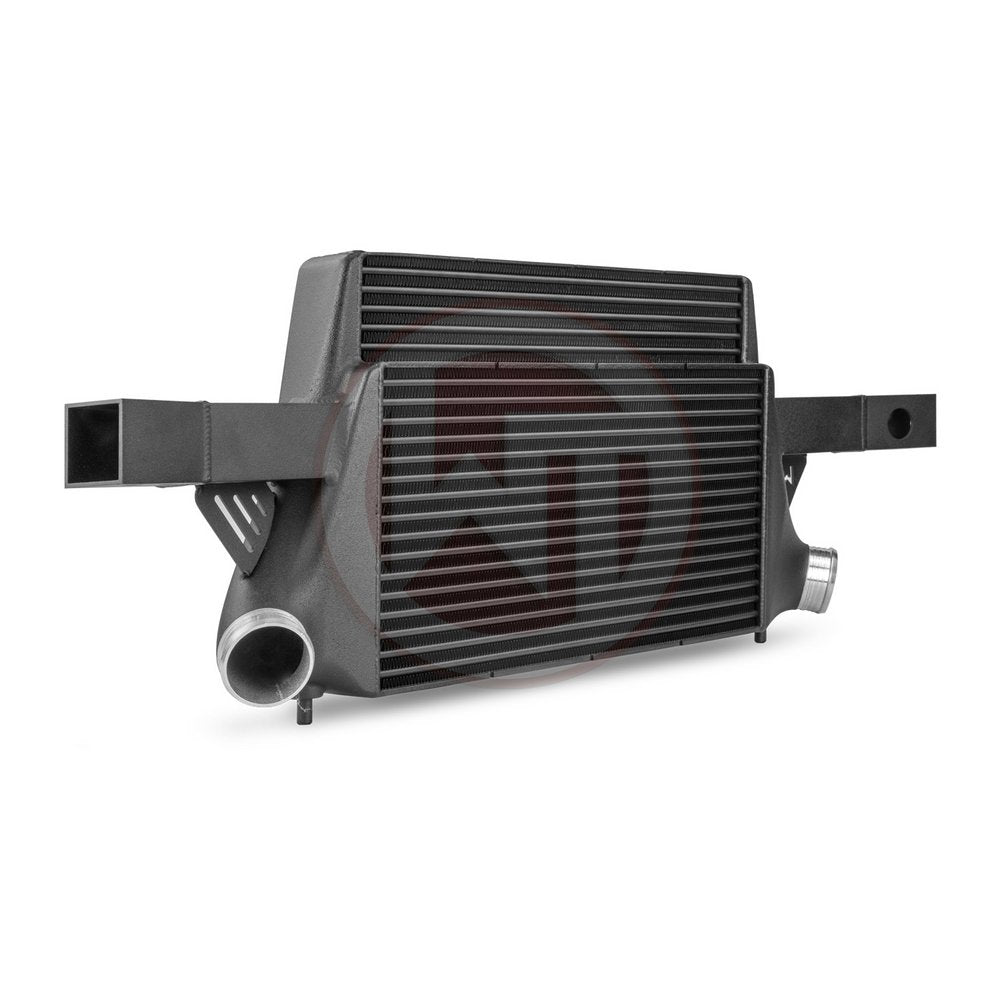

Wagner Tuning Audi RS3 8P EVO3 Competition Intercooler Kit
The Competition Intercooler Kit EVO3 for Audi RS3 8P is now available with TV certificate and two different intercooler core options.
Important note: We recommend using the standard version for power applications up to 600HP and the X-version for power applications above 600HP.

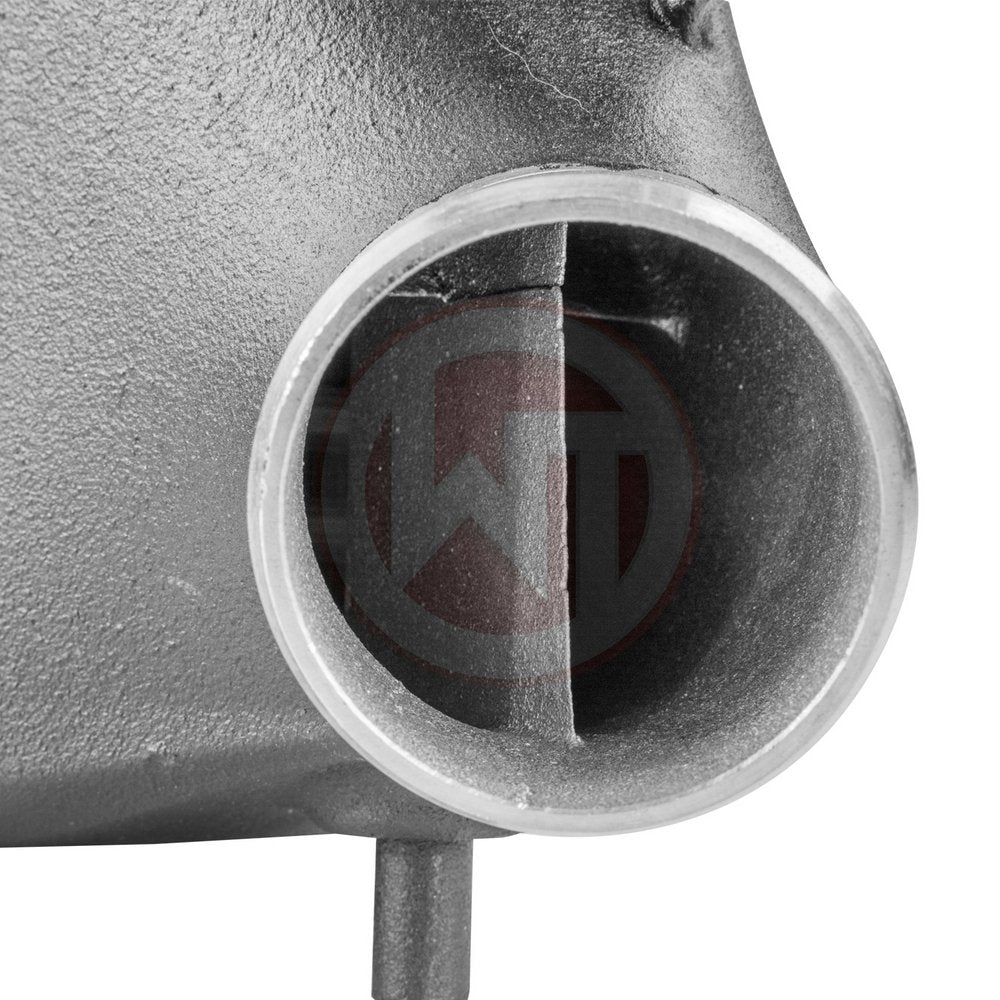

The high-performance intercooler has the following core dimensions: 515mm x 367 [274] mm x 95mm. This offers a 120% larger cooling surface and 142% more charge air volume compared to the original intercooler. The newly developed competition core ensures sufficient airflow to adjacent components, such as the water cooler, and is also very light. The end tanks of the intercooler are made of cast aluminium and have been optimised under flow analysis in the CAD system. Additional air baffles inside the inlet provide uniform filling of the intercooler, resulting in excellent cooling properties with minimal back pressure. This kit is ideal for racing.

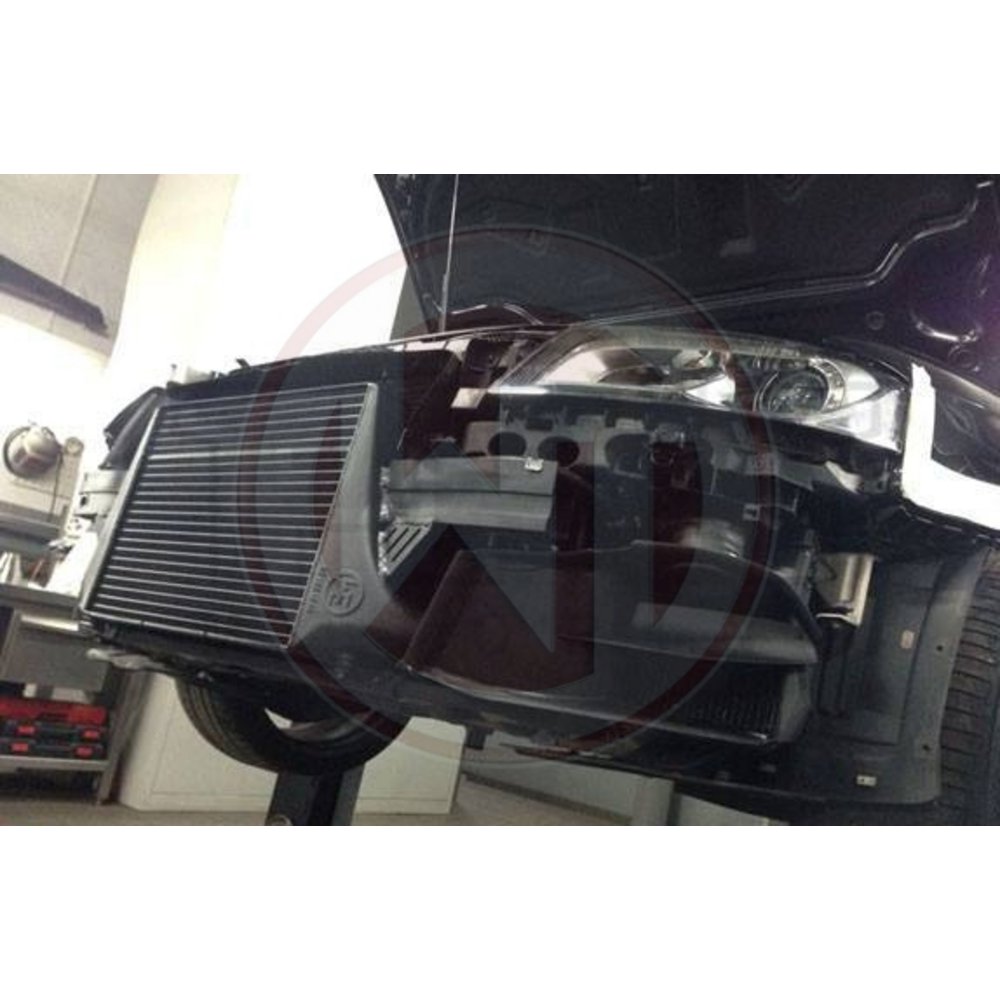

The intercooler and the original crossmember form a stable unit and weigh only 11.2 kg. It is mounted to the original mounting points and is easy to install (1:1 exchange). It ensures optimum cooling of the charged air with a clear increase in performance. On both sides, the connection diameter is 68mm.
Advantages of the Wagner Tuning Intercooler:
- Improved cooling performance
- 120% larger inflow area
- 142% more charge air volume
- Minimal back pressure
- Plug & play installation
Specifications:
- OEM Intercooler: Cooling surface 856cm / Charge air volume 6.8L
- WT EVO1 Performance: Cooling surface 856cm / Charge air volume 9.4L
- WT EVO2 Competition: Cooling surface 1391cm / Charge air volume 13.2L
- WT EVO3 Competition: Cooling surface 1890cm / Charge air volume 16.5L
Packing List:
- 1 Intercooler including crossmember
- 1 Mounting material
- 1 Set licence plate holder
- 1 Installation instruction
