Wagner Tuning Audi RS3 8V EVO3.X 600HP+ Competition Intercooler Kit
The COMPETITION INTERCOOLER EVO3 for the Audi RS3 8V is now available with a TV certificate and two different intercooler core options.
Compatibility
- Audi RS3 8V Sportback 270KW/367PS (04/2015 04/2016)
- Audi RS3 8V Sportback/Sedan 294KW/400PS (08/2017+)
The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications of 600PS+. The size of the intercooler remains unchanged from the original version, but the internal core design has been further optimised for high power applications, guaranteeing optimal air flow and excellent cooling performance. For power applications below 600PS, the standard version is recommended.
Key Features
- Core dimensions: 515mm x 367mm x 95mm (16.5L/14.45Inch x 3.74Inch = 1006.9Inch)
- 84% larger cooling surface and 101% more charge air volume compared to the original intercooler
- Constructed of high-quality TUBE and FIN intercooler cores with inside turbulators
- Cast aluminium end tanks optimised by CFD for best possible internal airflow
- Additional air guides inside the inlet for uniform filling of the intercooler
- Excellent cooling properties with minimum pressure drop
- Intercooler and crossmember form a stable unit weighing only 14.3 kg
- Mounted to the original mounting points for easy installation (1:1 exchange)
- 68mm (2.67Inch) in- and outlets
Performance Comparison
- OEM Intercooler: Cooling surface 1024cm (158.7Inch), Charge-air volume 8.2L (500.4Inch)
- WT EVO3 Competition: Cooling surface 1890cm (293Inch), Charge-air volume 16.5L (1006.9Inch)
Note: ACC equipped cars may require recalibration of the ACC Sensor.
Kit Includes

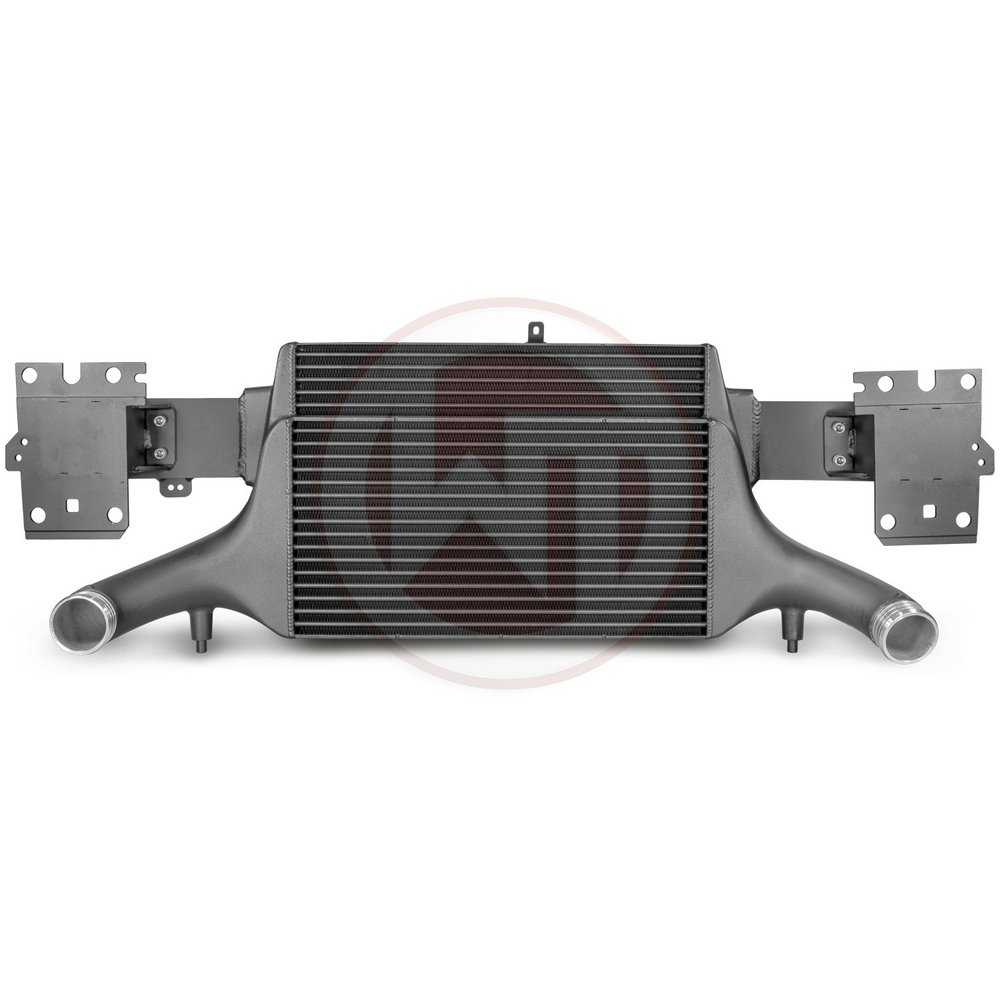

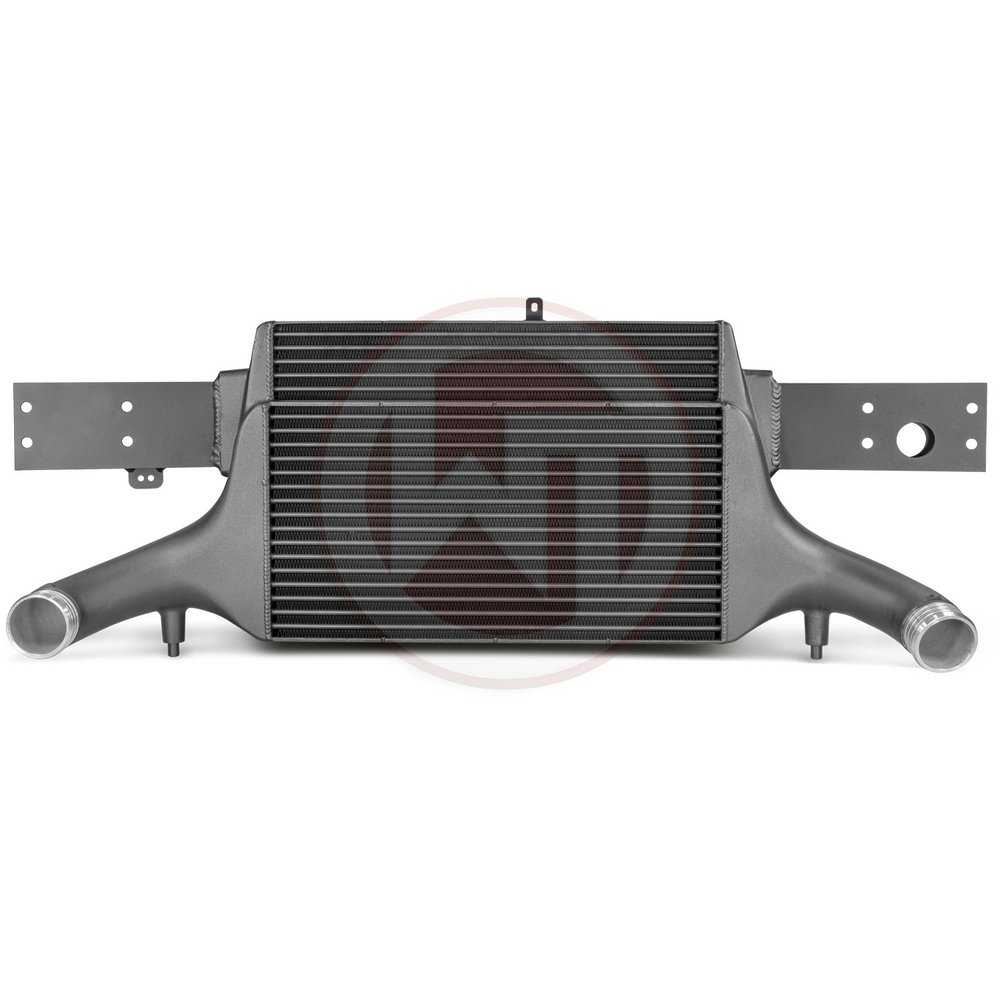

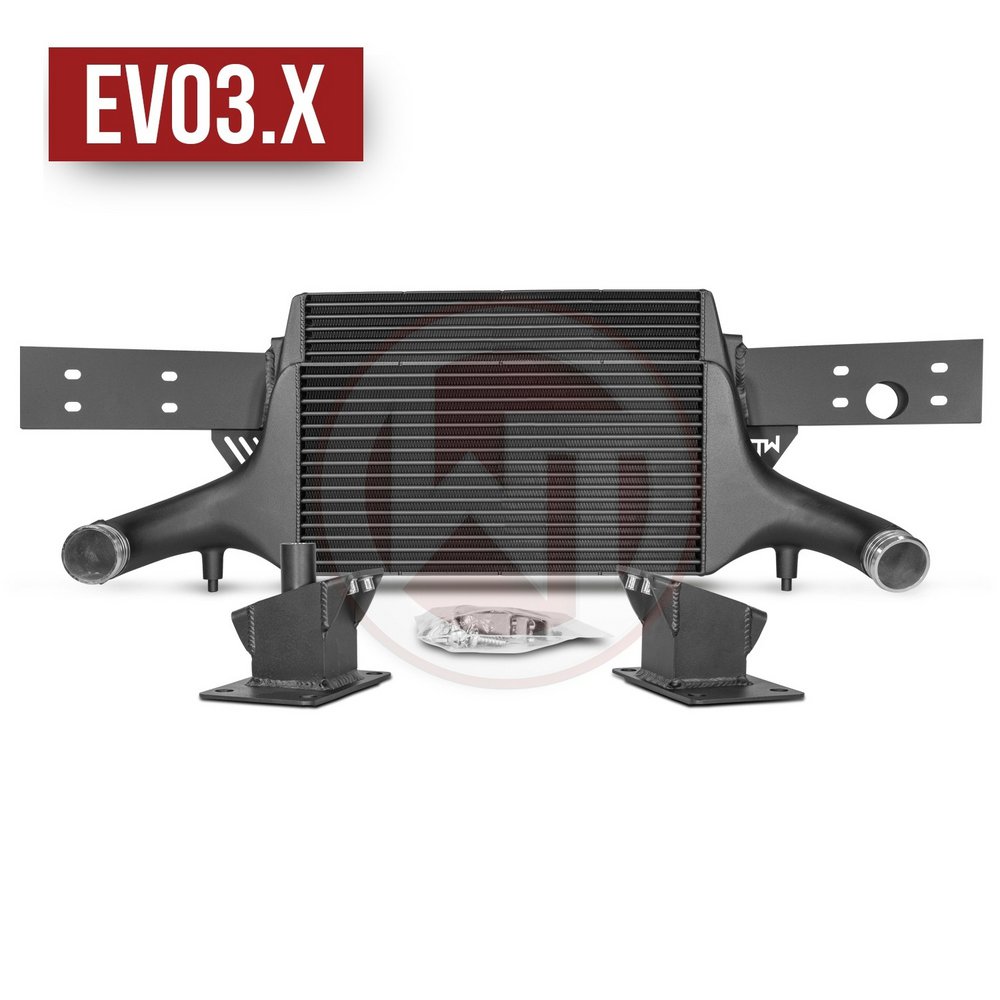

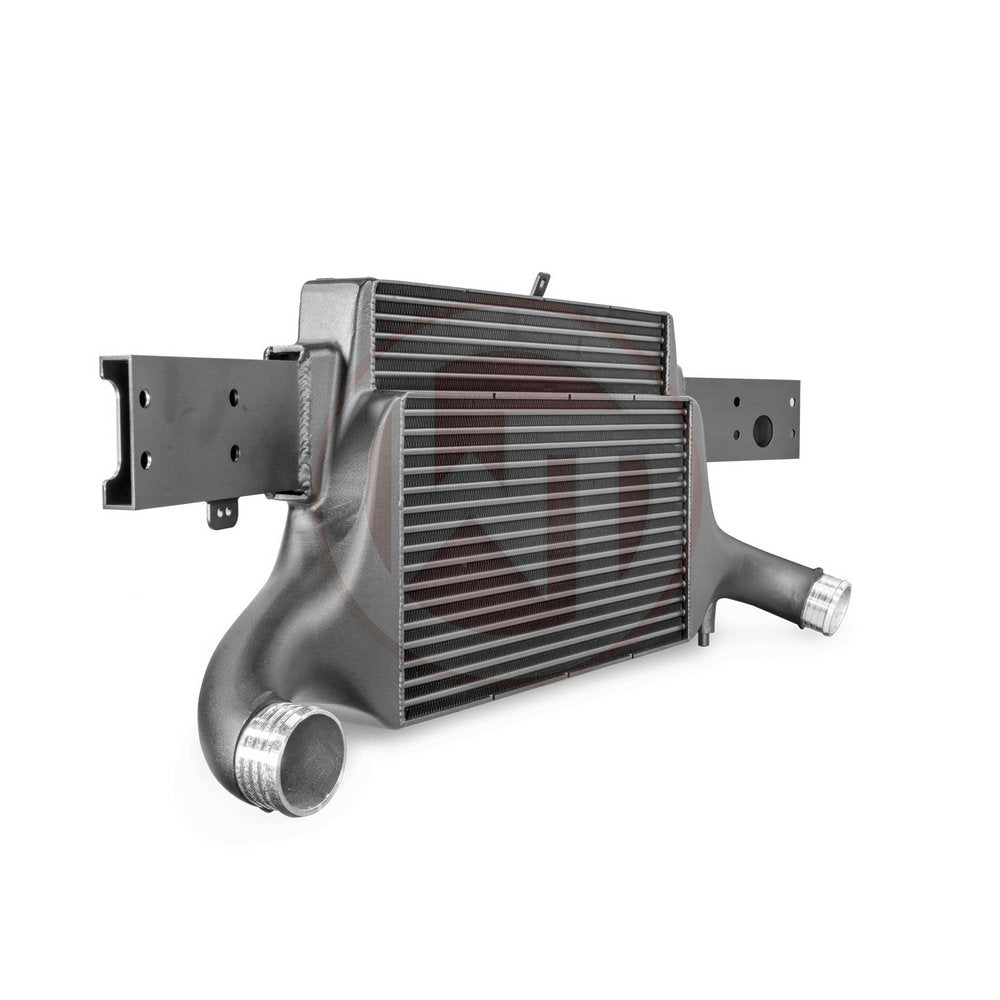

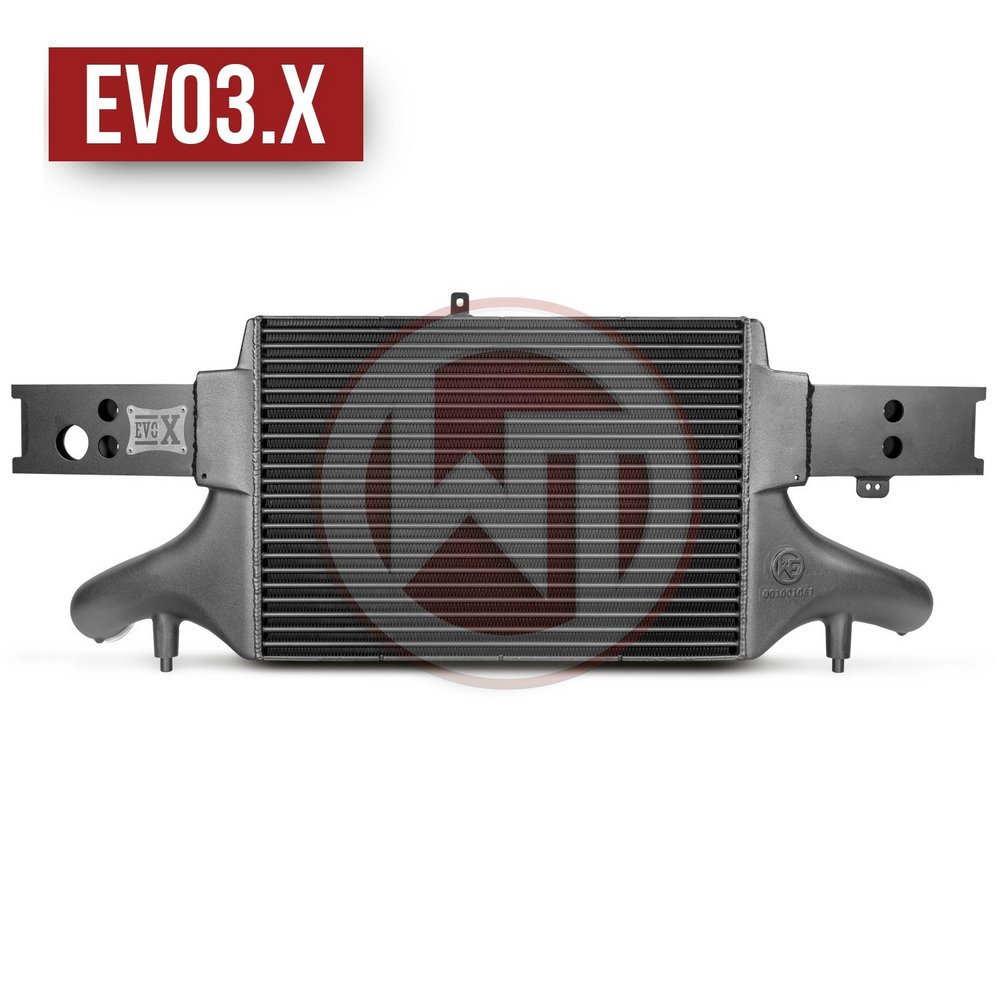

- 1 intercooler including crossmember
- 1 mounting material
- 1 installation instruction
- 1 TV Certification
