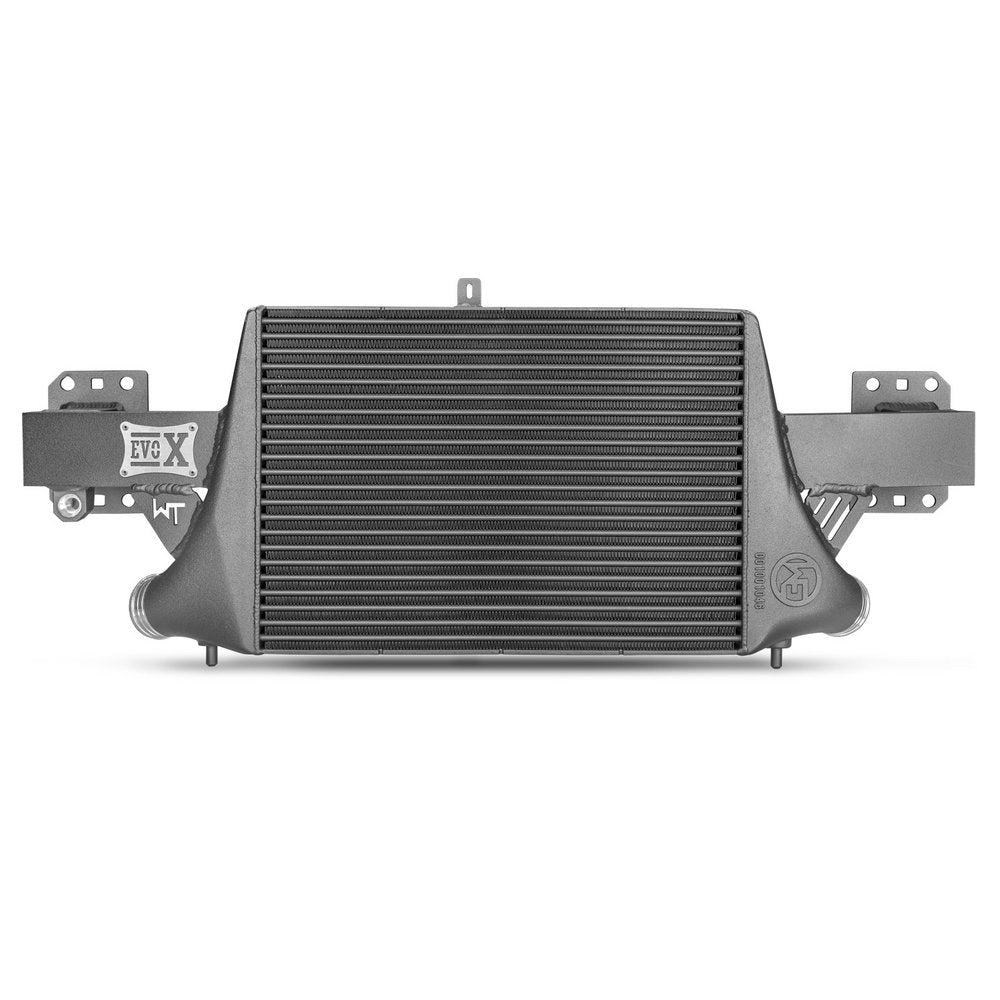

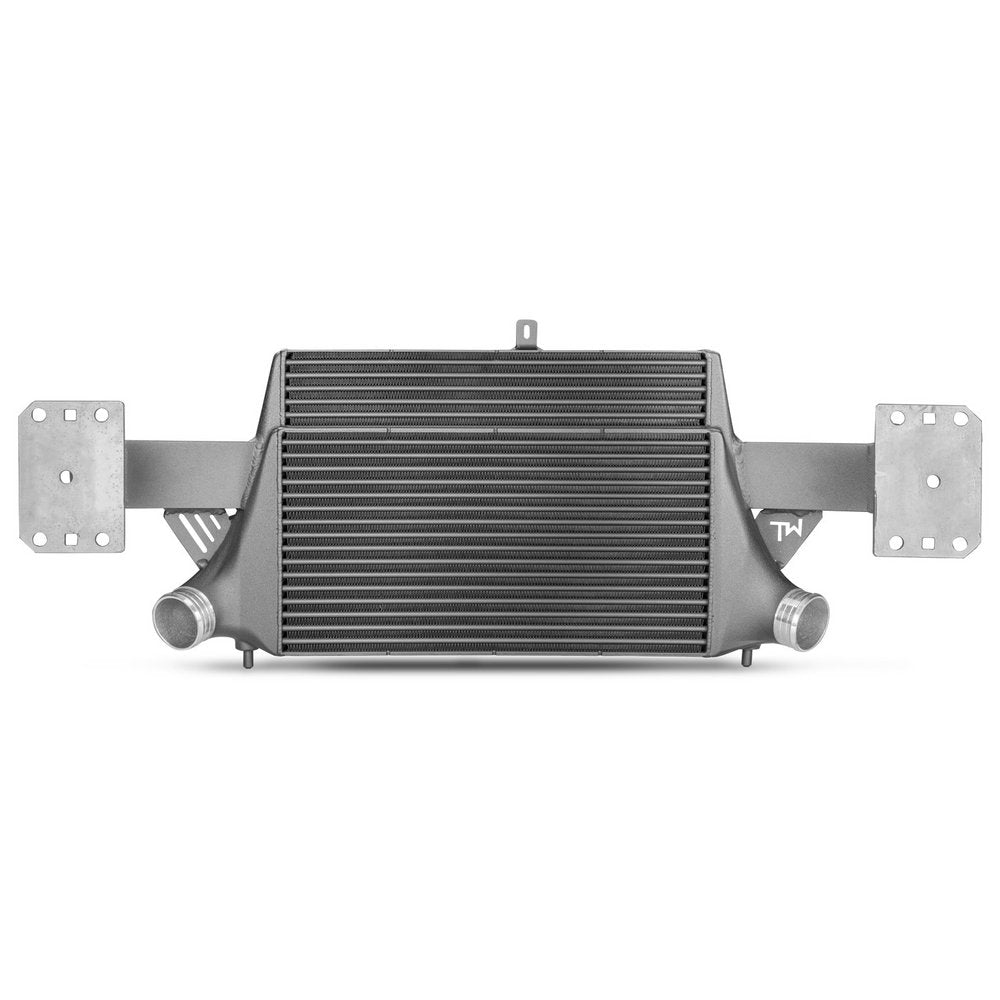

Wagner Tuning Audi TTRS 8J EVO3.X 600HP+ Competition Intercooler Kit
The Competition Intercooler Kit EVO3 for Audi TTRS 8J is now available with a TV certificate and two different intercooler core options. The new core option EVO3.X, developed in cooperation with a renowned German Audi tuner, is suitable for higher performance applications of 600PS+. The size of the intercooler remains unchanged from the original version, but the internal core design has been further optimised for high power applications, guaranteeing optimal air flow and excellent cooling performance. For power applications below 600PS, the standard version is recommended.
The high performance intercooler has the following core dimensions: 515mm x 367 [274] mm x 95mm, offering a 120% larger cooling surface and 142% more charge air volume compared to the original intercooler. The newly developed Competition Core ensures sufficient airflow to adjacent components, such as the watercooler, and is also very light. The endtanks of the intercooler are made of cast aluminium and have been optimised under flow analysis in the CAD system. Additional air baffles inside the inlet provide uniform filling of the intercooler, resulting in excellent cooling properties with minimum back pressure. This kit is ideal for racing.

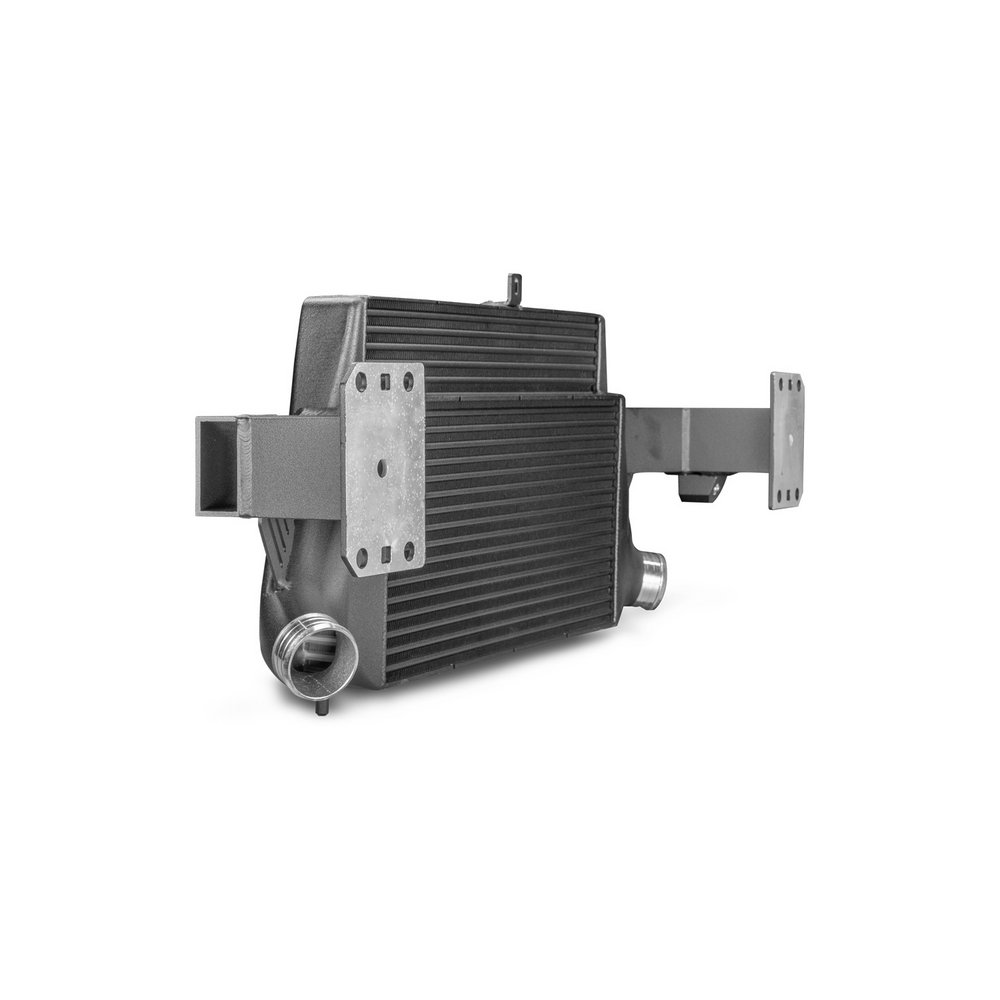

The intercooler and the original crossmember form a stable unit and weigh only 11.2 kg. It is mounted to the original mounting points and is easy to install (1:1 exchange). It ensures optimum cooling of the charged air with a clear increase in performance. The connection diameter on both sides is 68mm.
Advantages of the Wagner Tuning Intercooler:
- Improved cooling performance
- 120% larger inflow area
- 142% more charge air volume
- Flow-optimised
- Less back pressure
- Connection diameter 68mm on both sides
- Plug & Play
Specifications:
- OEM Intercooler: Cooling Surface 856cm / Charge Air Volume 6.8L
- WT EVO1 Performance: Cooling Surface 856cm / Charge Air Volume 9.4L
- WT EVO2 Competition: Cooling Surface 1391cm / Charge Air Volume 13.2L
- WT EVO3 Competition: Cooling Surface 1890cm / Charge Air Volume 16.5L
Packing List:
- 1 Intercooler including crossmember
- 1 Mounting material
- 1 Set licence plate holder
- 1 Installation instruction
Note: Only for racing.
